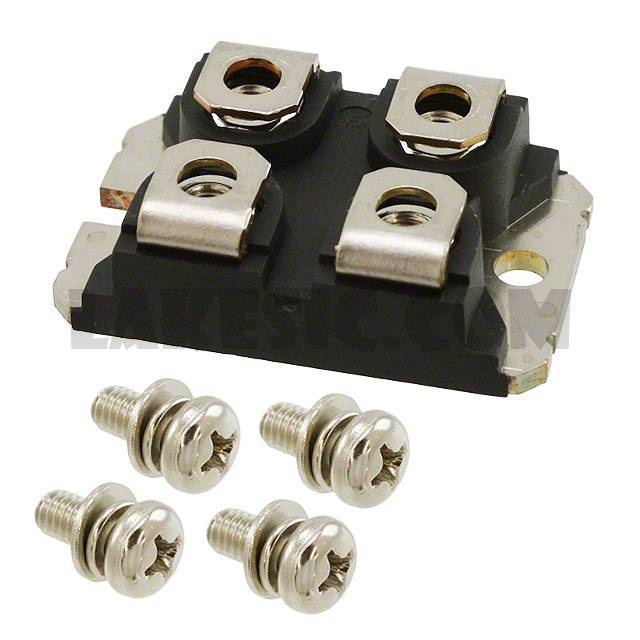

VS-GT175DA120U

Part NumberVS-GT175DA120U

ManufacturerVishay Semiconductor Diodes Division

DescriptionIGBT 1200V 288A 1087W SOT-227

DatasheetVS-GT175DA120U

Package / CaseSOT-227-4, miniBLOC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Single 1200V 288A 1087W Chassis Mount SOT-227

To learn about the specification of VS-GT175DA120U, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-GT175DA120U with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-GT175DA120U.
We are offering VS-GT175DA120U for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-GT175DA120U - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

VS-GT175DA120U

Standard Package

160

Manufacturer

Vishay Semiconductor Diodes Division

Series

Part Status

Obsolete

IGBT Type

Trench

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

288A

Power - Max

1087W

Vce(on) (Max) @ Vge, Ic

2.1V @ 15V, 100A

Current - Collector Cutoff (Max)

100µA

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SOT-227-4, miniBLOC

Supplier Device Package

SOT-227
