Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	VS-SD1100CxxC Series
Standard Package	12
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	1400A
Voltage - Forward (Vf) (Max) @ If	1.31V @ 1500A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	35mA @ 1200V
Capacitance @ Vr, F	-
Mounting Type	Stud Mount

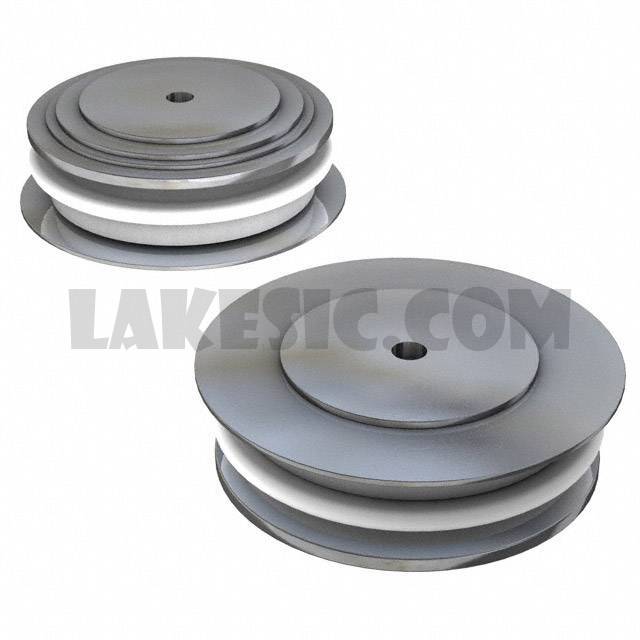

Package / Case	DO-200AA, A-PUK
Supplier Device Package	B-43, Hockey PUK
