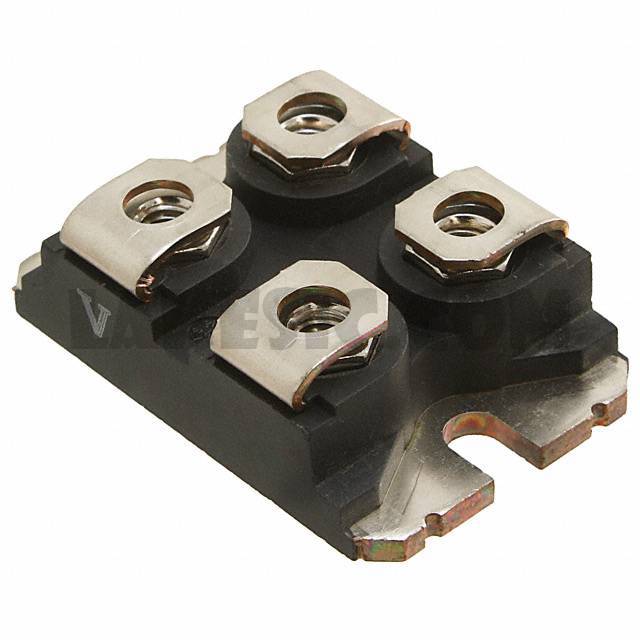

VS-UFB80FA20

Part NumberVS-UFB80FA20

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE MODULE 200V 40A SOT227

DatasheetVS-UFB80FA20

Package / CaseSOT-227-4, miniBLOC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 2 Independent Standard 200V 40A (DC) Chassis Mount SOT-227-4, miniBLOC

To learn about the specification of VS-UFB80FA20, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-UFB80FA20 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-UFB80FA20.
We are offering VS-UFB80FA20 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-UFB80FA20 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	VS-UFB80FA20
Standard Package	10
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Configuration	2 Independent
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io) (per Diode)	40A (DC)
Voltage - Forward (Vf) (Max) @ If	1.08V @ 30A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	34ns
Current - Reverse Leakage @ Vr	50µA @ 200V
Mounting Type	Chassis Mount
Package / Case	SOT-227-4, miniBLOC
Supplier Device Package	SOT-227
