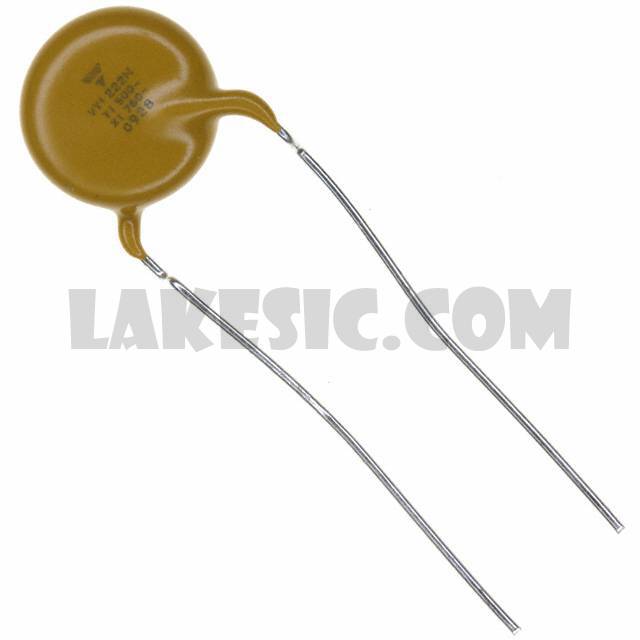

Categories	Capacitors / Ceramic Capacitors
Datasheet	VY1 Series Datasheet
Standard Package	1
Manufacturer	Vishay BC Components
Series	VY1
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	2200pF
Tolerance	±20%
Voltage - Rated	760VAC
Temperature Coefficient	Y5U (E)
Operating Temperature	-40°C ~ 125°C
Features	-
Ratings	X1, Y1
Applications	Safety
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.472" Dia (12.00mm)
Height - Seated (Max)	0.630" (16.00mm)
Thickness (Max)	-
Lead Spacing	0.394" (10.00mm)
Lead Style	Formed Leads - Kinked

VY1222M37Y5VQ63V0	Vishay BC Components, 2200pF ±20% 500VAC Ceramic Capacitor Y5V (F) Radial, Disc, VY1	View
VY1332M59Y5UQ6TV0	Vishay BC Components, 3300pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc, VY1	View
VY1331K31Y5SQ63V0	Vishay BC Components, 330pF ±10% 760VAC Ceramic Capacitor Y5S Radial, Disc, VY1	View
VY1472M63Y5UQ6TV0	Vishay BC Components, 4700pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc, VY1	View
VY1222M47Y5UQ6TV0	Vishay BC Components, 2200pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc, VY1	View
VY1680K31Y5SQ63V0	Vishay BC Components, 68pF ±10% 760VAC Ceramic Capacitor Y5S Radial, Disc, VY1	View
VY1332M59Y5UQ6TV0	Vishay BC Components, 3300pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc, VY1	View
VY1101K31Y5SQ63V0	Vishay BC Components, 100pF ±10% 760VAC Ceramic Capacitor Y5S Radial, Disc, VY1	View
VY1102M35Y5UQ6TV0	Vishay BC Components, 1000pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc, VY1	View
VY1681M31Y5UQ6TV0	Vishay BC Components, 680pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc, VY1	View
VY1221K31Y5SQ63V0	Vishay BC Components, 220pF ±10% 760VAC Ceramic Capacitor Y5S Radial, Disc, VY1	View
VY1472M51Y5VQ63V0	Vishay BC Components, 4700pF ±20% 500VAC Ceramic Capacitor Y5V (F) Radial, Disc, VY1	View

VY1222M47Y5UQ6UV0

Part NumberVY1222M47Y5UQ6UV0
