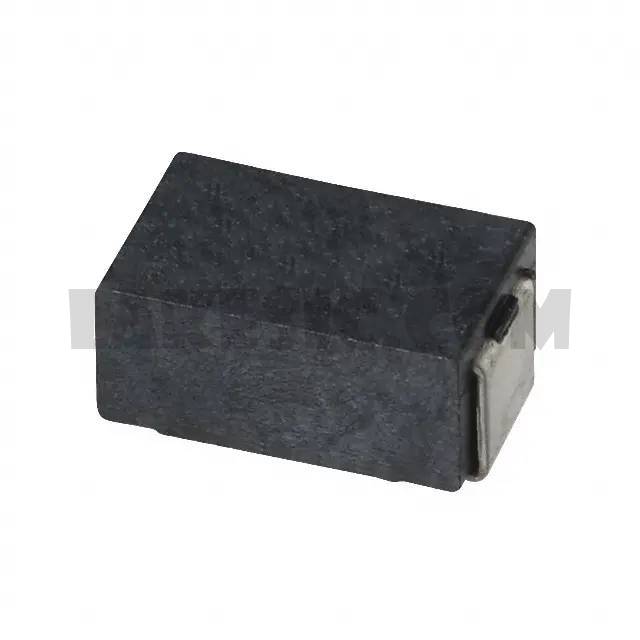

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	WSC, WSN Series
Standard Package	2000
Manufacturer	Vishay Dale
Series	WSC
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	500 mOhms
Tolerance	±1%
Power (Watts)	1W
Composition	Wirewound
Features	Pulse Withstanding
Temperature Coefficient	±90ppm/°C
Operating Temperature	-65°C ~ 275°C
Package / Case	2515 J-Lead
Supplier Device Package	2515
Size / Dimension	0.250" L x 0.150" W (6.35mm x 3.81mm)
Height - Seated (Max)	0.125" (3.17mm)
Number of Terminations	2
Failure Rate	-

WSC01/24R990FEA	Vishay Dale, 4.99 Ohms ±1% 0.5W, 1/2W Chip Resistor 2012 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC251550R00FEA	Vishay Dale, 50 Ohms ±1% 1W Chip Resistor 2515 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC01/21R000FEA	Vishay Dale, 1 Ohms ±1% 0.5W, 1/2W Chip Resistor 2012 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC251550R00FEA	Vishay Dale, 50 Ohms ±1% 1W Chip Resistor 2515 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC6927R5000FEA	Vishay Dale, 500 mOhms ±1% 3W Chip Resistor 6927 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC25151K000FEA	Vishay Dale, 1 kOhms ±1% 1W Chip Resistor 2515 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC45272K000FEA	Vishay Dale, 2 kOhms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC25151R000FEA	Vishay Dale, 1 Ohms ±1% 1W Chip Resistor 2515 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC01/21R000FEA	Vishay Dale, 1 Ohms ±1% 0.5W, 1/2W Chip Resistor 2012 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC2515100R0FEA	Vishay Dale, 100 Ohms ±1% 1W Chip Resistor 2515 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC01/22R000FEA	Vishay Dale, 2 Ohms ±1% 0.5W, 1/2W Chip Resistor 2012 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC692710R00FEA	Vishay Dale, 10 Ohms ±1% 3W Chip Resistor 6927 J-Lead Pulse Withstanding Wirewound, WSC	View

WSC2515R5000FEA

Part NumberWSC2515R5000FEA
