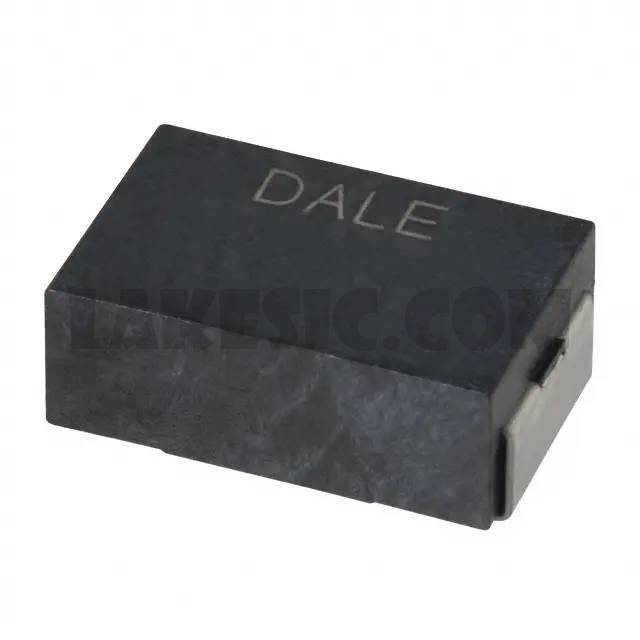

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	WSC, WSN Series
Standard Package	1
Manufacturer	Vishay Dale
Series	WSC
Packaging	Cut Tape (CT)
Part Status	Active
Resistance	100 Ohms
Tolerance	±1%
Power (Watts)	2W
Composition	Wirewound
Features	Pulse Withstanding
Temperature Coefficient	±20ppm/°C
Operating Temperature	-65°C ~ 275°C
Package / Case	4527 J-Lead
Supplier Device Package	4527
Size / Dimension	0.455" L x 0.275" W (11.56mm x 6.98mm)
Height - Seated (Max)	0.177" (4.49mm)
Number of Terminations	2
Failure Rate	-

WSC452750R00FEA	Vishay Dale, 50 Ohms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC45272K000FEA	Vishay Dale, 2 kOhms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC01/24R990FEA	Vishay Dale, 4.99 Ohms ±1% 0.5W, 1/2W Chip Resistor 2012 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC01/22R000FEA	Vishay Dale, 2 Ohms ±1% 0.5W, 1/2W Chip Resistor 2012 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC69271K000FEA	Vishay Dale, 1 kOhms ±1% 3W Chip Resistor 6927 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC692710R00FEA	Vishay Dale, 10 Ohms ±1% 3W Chip Resistor 6927 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC6927R5000FEA	Vishay Dale, 500 mOhms ±1% 3W Chip Resistor 6927 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC25152R000FEA	Vishay Dale, 2 Ohms ±1% 1W Chip Resistor 2515 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC4527100R0FEA	Vishay Dale, 100 Ohms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC452710R00FEA	Vishay Dale, 10 Ohms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC452710R00FEA	Vishay Dale, 10 Ohms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC2515100R0FEA	Vishay Dale, 100 Ohms ±1% 1W Chip Resistor 2515 J-Lead Pulse Withstanding Wirewound, WSC	View

WSC4527100R0FEA

Part NumberWSC4527100R0FEA
