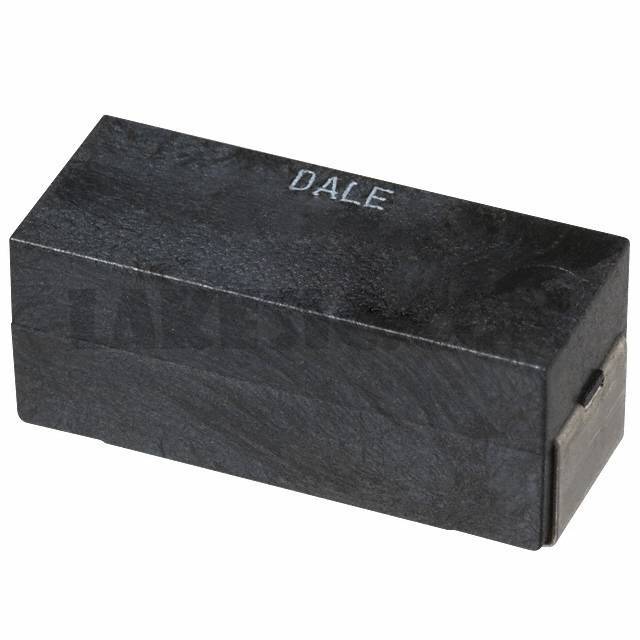

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	WSC, WSN Series
Standard Package	725
Manufacturer	Vishay Dale
Series	WSC
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	1 Ohms
Tolerance	±1%
Power (Watts)	3W
Composition	Wirewound
Features	Pulse Withstanding
Temperature Coefficient	±50ppm/°C
Operating Temperature	-65°C ~ 275°C
Package / Case	6927 J-Lead
Supplier Device Package	6927
Size / Dimension	0.690" L x 0.275" W (17.53mm x 6.98mm)
Height - Seated (Max)	0.295" (7.49mm)
Number of Terminations	2
Failure Rate	-

WSC4527100R0FEA	Vishay Dale, 100 Ohms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC25151R000FEA	Vishay Dale, 1 Ohms ±1% 1W Chip Resistor 2515 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC69271R000FEA	Vishay Dale, 1 Ohms ±1% 3W Chip Resistor 6927 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC6927R5000FEA	Vishay Dale, 500 mOhms ±1% 3W Chip Resistor 6927 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC2515R5000FEA	Vishay Dale, 500 mOhms ±1% 1W Chip Resistor 2515 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC4527400R0FEA	Vishay Dale, 400 Ohms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC6927100R0FEA	Vishay Dale, 100 Ohms ±1% 3W Chip Resistor 6927 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC452750R00FEA	Vishay Dale, 50 Ohms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC25152K000FEA	Vishay Dale, 2 kOhms ±1% 1W Chip Resistor 2515 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC6927100R0FEA	Vishay Dale, 100 Ohms ±1% 3W Chip Resistor 6927 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC692710R00FEA	Vishay Dale, 10 Ohms ±1% 3W Chip Resistor 6927 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC452710R00FEA	Vishay Dale, 10 Ohms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View

WSC69271R000FEA

Part NumberWSC69271R000FEA
