Categories	Discrete Semiconductor Products / Thyristors - TRIACs
Datasheet	Z0109NA0
Standard Package	5000
Manufacturer	WeEn Semiconductors
Series	-
Packaging	Bulk
Part Status	Active
Triac Type	Logic - Sensitive Gate
Voltage - Off State	800V
Current - On State (It (RMS)) (Max)	1A
Voltage - Gate Trigger (Vgt) (Max)	1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm)	12.5A, 13.8A
Current - Gate Trigger (Igt) (Max)	10mA
Current - Hold (Ih) (Max)	10mA
Configuration	Single
Operating Temperature	125°C (TJ)
Mounting Type	Through Hole

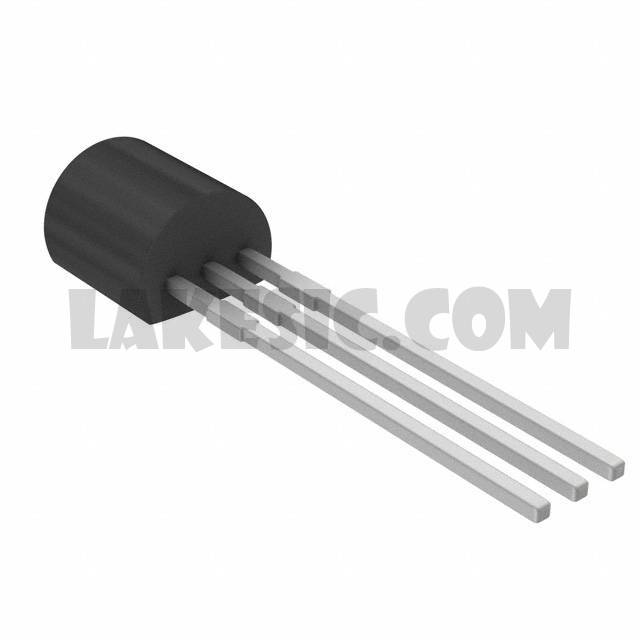

Package / Case	TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package	TO-92-3
Base Part Number	Z0109
