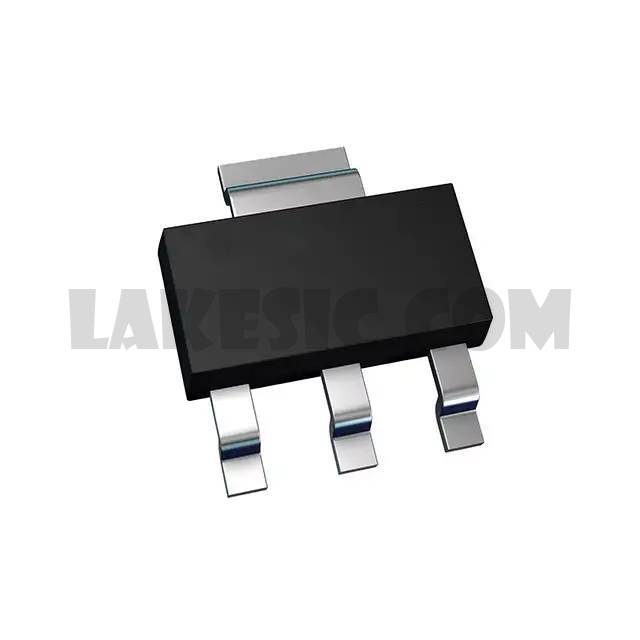

ZXMN6A11GTA

ZXMN6A11GTA

Part NumberZXMN6A11GTA

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CH 60V 3.1A SOT223

DatasheetZXMN6A11G SERIES

Package / CaseTO-261-4, TO-261AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 3.1A (Ta) 2W (Ta) Surface Mount SOT-223

To learn about the specification of ZXMN6A11GTA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ZXMN6A11GTA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ZXMN6A11GTA.
We are offering ZXMN6A11GTA for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ZXMN6A11GTA - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	ZXMN6A11G SERIES
Standard Package	1000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	3.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	120mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.7nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	330pF @ 40V
FET Feature	-
Power Dissipation (Max)	2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223
Package / Case	TO-261-4, TO-261AA
