ZXT12N50DXTA

Part NumberZXT12N50DXTA

ManufacturerDiodes Incorporated

DescriptionTRANS 2NPN 50V 3A 8MSOP

DatasheetZXT12N50DXTC

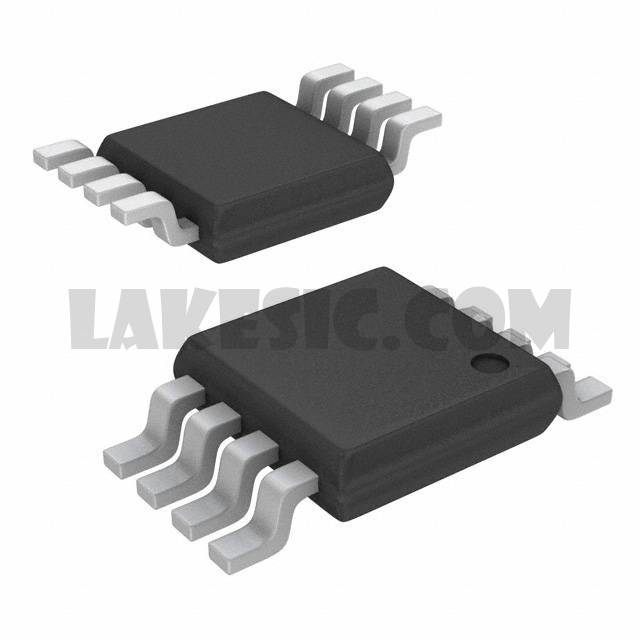

Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 2 NPN (Dual) 50V 3A 132MHz 1.04W Surface Mount 8-MSOP

To learn about the specification of ZXT12N50DXTA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ZXT12N50DXTA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ZXT12N50DXTA.
We are offering ZXT12N50DXTA for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ZXT12N50DXTA - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	ZXT12N50DXTC
Standard Package	1000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	2 NPN (Dual)
Current - Collector (Ic) (Max)	3A
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	250mV @ 50mA, 3A
Current - Collector Cutoff (Max)	100nA
DC Current Gain (hFE) (Min) @ Ic, Vce	300 @ 1A, 2V
Power - Max	1.04W
Frequency - Transition	132MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package	8-MSOP
Base Part Number	ZXT12N50D
