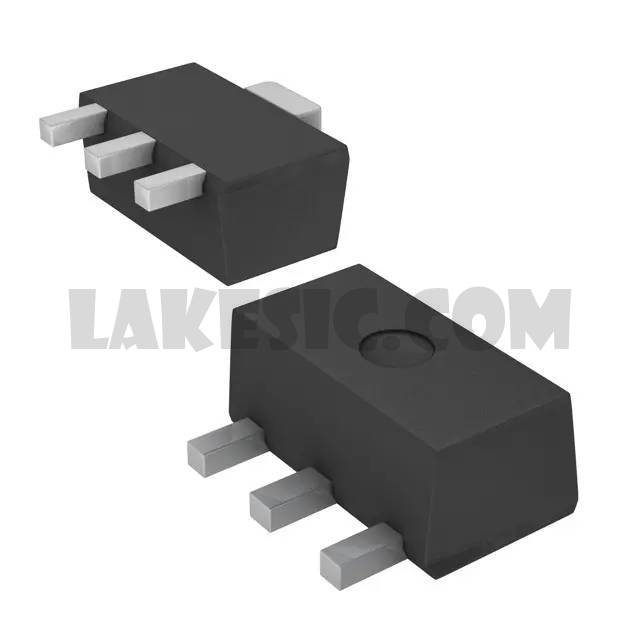

ZXTP19020DZTA

ZXTP19020DZTA

Part NumberZXTP19020DZTA

ManufacturerDiodes Incorporated

DescriptionTRANS PNP 20V 6A SOT89

DatasheetZXTP19020DZ

Package / CaseTO-243AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 20V 6A 176MHz 2.4W Surface Mount SOT-89-3

To learn about the specification of ZXTP19020DZTA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ZXTP19020DZTA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ZXTP19020DZTA.
We are offering ZXTP19020DZTA for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ZXTP19020DZTA - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	ZXTP19020DZ
Standard Package	1000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	6A
Voltage - Collector Emitter Breakdown (Max)	20V
Vce Saturation (Max) @ Ib, Ic	275mV @ 300mA, 6A
Current - Collector Cutoff (Max)	50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	300 @ 100mA, 2V
Power - Max	2.4W
Frequency - Transition	176MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-243AA
Supplier Device Package	SOT-89-3
Base Part Number	ZXTP19020D
