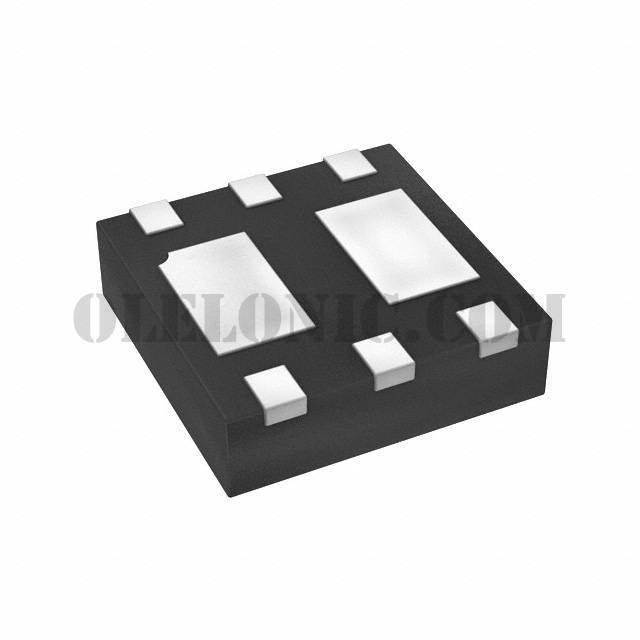

ZXTP56020FDBQ-7

Part NumberZXTP56020FDBQ-7

ManufacturerDiodes Incorporated

DescriptionTRANS 2PNP 20V 2A U-DFN2020-6

DatasheetZXTP56020FDBQ

Package / Case6-UDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 2 PNP (Dual) 20V 2A 405mW Surface Mount U-DFN2020-6

To learn about the specification of ZXTP56020FDBQ-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ZXTP56020FDBQ-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ZXTP56020FDBQ-7.
We are offering ZXTP56020FDBQ-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ZXTP56020FDBQ-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	ZXTP56020FDBQ
Standard Package	1
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	2 PNP (Dual)
Current - Collector (Ic) (Max)	2A
Voltage - Collector Emitter Breakdown (Max)	20V
Vce Saturation (Max) @ Ib, Ic	390mV @ 200mA, 2A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	250 @ 100mA, 2V
Power - Max	405mW
Frequency - Transition	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UDFN Exposed Pad
Supplier Device Package	U-DFN2020-6
