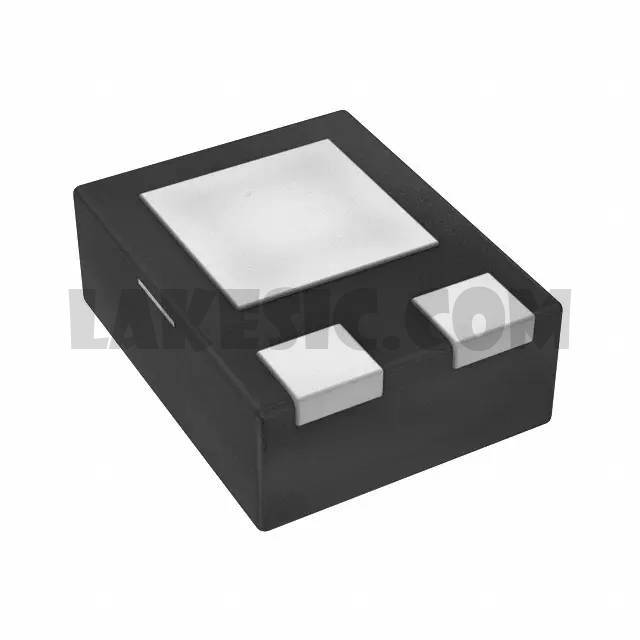

ZXTP722MATA

ZXTP722MATA

Part NumberZXTP722MATA

ManufacturerDiodes Incorporated

DescriptionTRANS PNP 70V 2.5A 3-DFN

DatasheetZXTP722MA

Package / Case3-UDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 70V 2.5A 180MHz 3W Surface Mount DFN2020B-3

To learn about the specification of ZXTP722MATA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ZXTP722MATA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ZXTP722MATA.
We are offering ZXTP722MATA for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ZXTP722MATA - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	ZXTP722MA
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	2.5A
Voltage - Collector Emitter Breakdown (Max)	70V
Vce Saturation (Max) @ Ib, Ic	260mV @ 200mA, 1.5A
Current - Collector Cutoff (Max)	25nA
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 1.5A, 5V
Power - Max	3W
Frequency - Transition	180MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	3-UDFN
Supplier Device Package	DFN2020B-3
Base Part Number	ZXTP722
