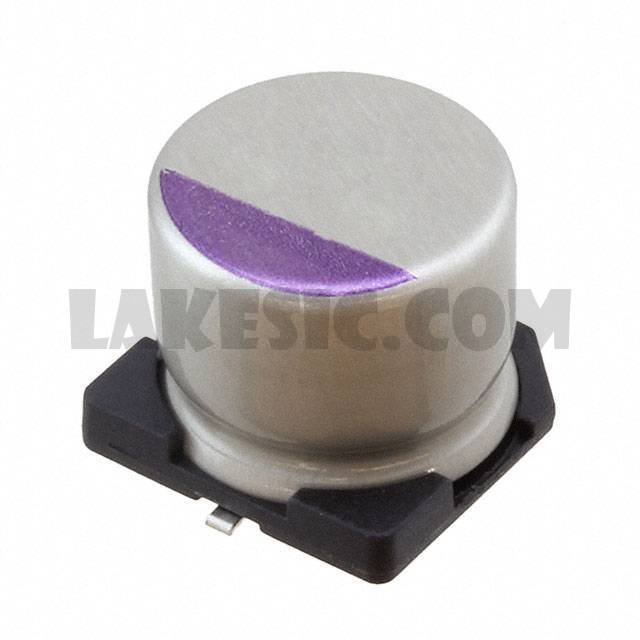

100SXV15M

Part Number100SXV15M

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM POLY 15UF 20% 100V SMD

DatasheetSXV OS-CON? Series Datasheet

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description15µF 100V Aluminum Polymer Capacitor Radial, Can - SMD 40mOhm @ 100kHz 1000 Hrs @ 125°C

To learn about the specification of 100SXV15M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 100SXV15M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 100SXV15M.
We are offering 100SXV15M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

100SXV15M - Product Attributes

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	SXV OS-CON? Series Datasheet
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	OS-CON™, SXV
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	15µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	40mOhm @ 100kHz
Lifetime @ Temp.	1000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	117.5mA @ 120Hz
Ripple Current @ High Frequency	2.35A @ 100kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
