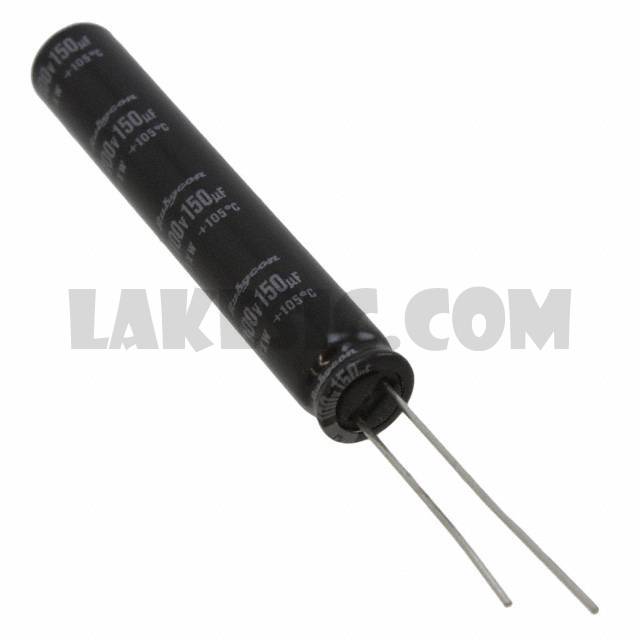

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TXW Series
Standard Package	500
Manufacturer	Rubycon
Series	TXW
Packaging	Bulk
Part Status	Active
Capacitance	150µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.2A @ 120Hz
Ripple Current @ High Frequency	2.41A @ 100kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	2.047" (52.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
