107CKE035M

Part Number107CKE035M

ManufacturerIllinois Capacitor

DescriptionCAP ALUM 100UF 20% 35V RADIAL

DatasheetCKH/CKE Series Datasheet

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

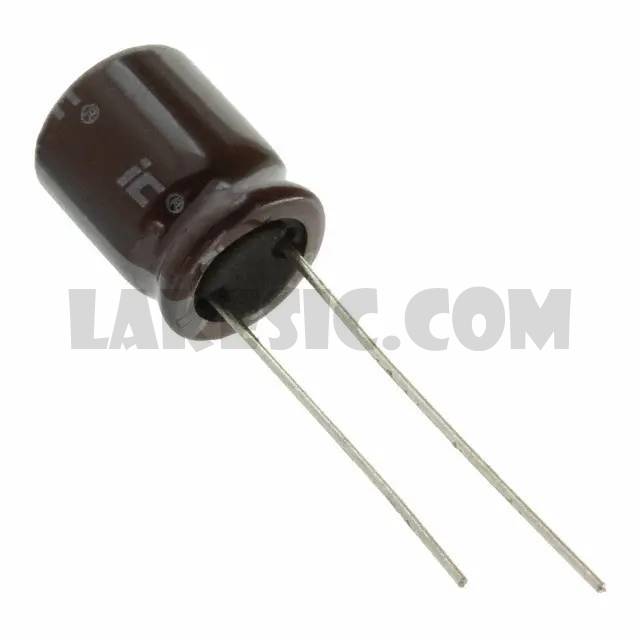

Detailed Description100µF 35V Aluminum Electrolytic Capacitors Radial, Can 1.989Ohm @ 120Hz 2000 Hrs @ 105°C

To learn about the specification of 107CKE035M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 107CKE035M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 107CKE035M.
We are offering 107CKE035M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

107CKE035M - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	CKH/CKE Series Datasheet
Standard Package	1000
Manufacturer	Illinois Capacitor
Series	CKE
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	1.989Ohm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	170mA @ 120Hz
Ripple Current @ High Frequency	280.5mA @ 100kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
