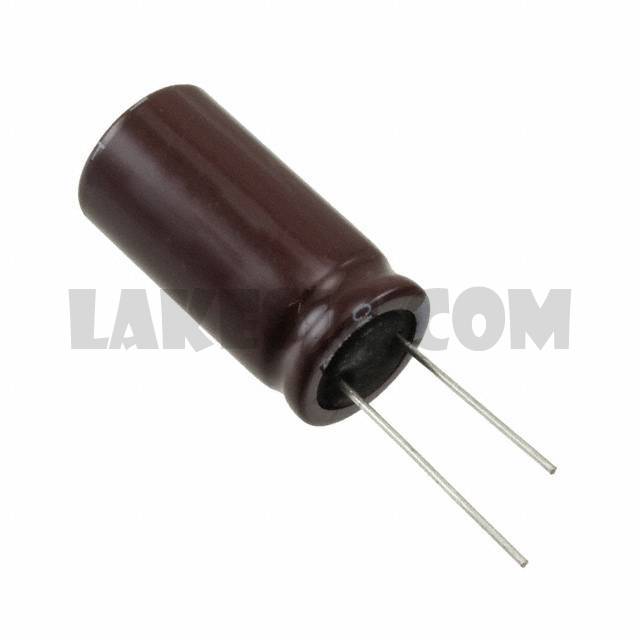

108CKE100M

Part Number108CKE100M

ManufacturerIllinois Capacitor

DescriptionCAP ALUM 1000UF 20% 100V RADIAL

DatasheetCKH/CKE Series Datasheet

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1000µF 100V Aluminum Electrolytic Capacitors Radial, Can 133mOhm @ 120Hz 2000 Hrs @ 105°C

To learn about the specification of 108CKE100M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 108CKE100M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 108CKE100M.
We are offering 108CKE100M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

108CKE100M - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	CKH/CKE Series Datasheet
Standard Package	250
Manufacturer	Illinois Capacitor
Series	CKE
Packaging	Bulk
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	133mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.02A @ 120Hz
Ripple Current @ High Frequency	2.828A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.634" (41.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
