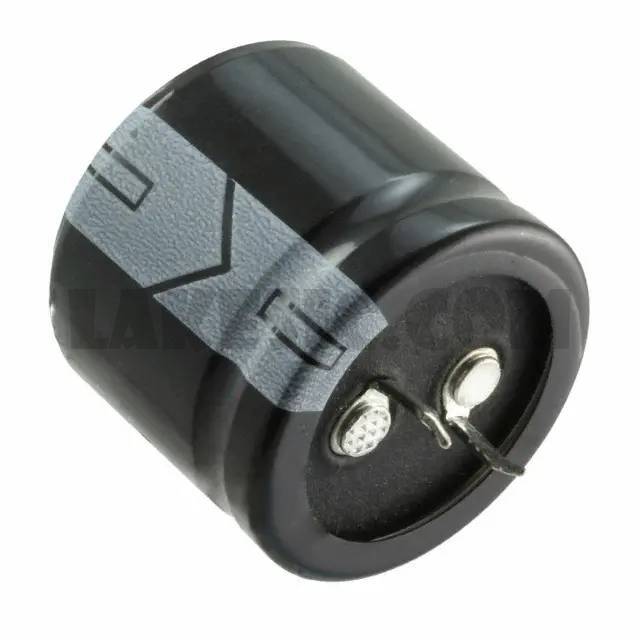

109LBA016M2CC

Part Number109LBA016M2CC

ManufacturerIllinois Capacitor

DescriptionCAP ALUM 10000UF 20% 16V SNAP

DatasheetLBA Series Datasheet

Package / CaseRadial, Can - Snap-In

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10000µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 82.89mOhm @ 120Hz 2000 Hrs @ 85°C

To learn about the specification of 109LBA016M2CC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 109LBA016M2CC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 109LBA016M2CC.
We are offering 109LBA016M2CC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

109LBA016M2CC - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LBA Series Datasheet
Standard Package	180
Manufacturer	Illinois Capacitor
Series	LBA
Packaging	Bulk
Part Status	Active
Capacitance	10000µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	82.89mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.76A @ 120Hz
Ripple Current @ High Frequency	3.45A @ 10kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
