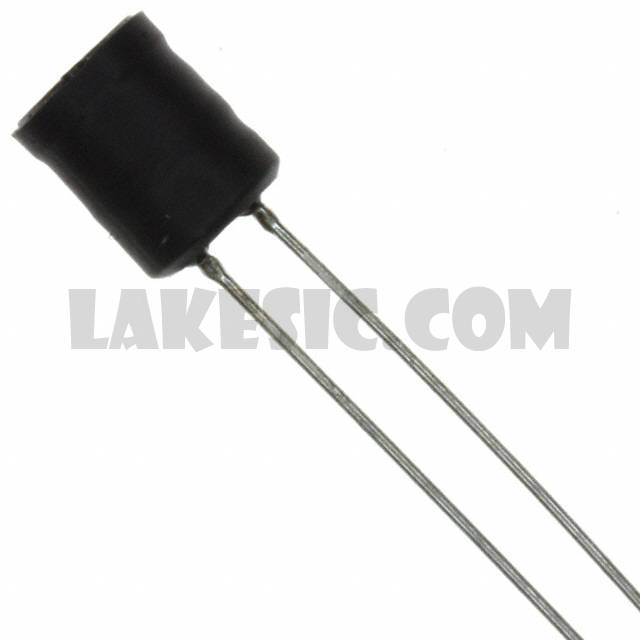

13R156C


13R156C

Part Number13R156C

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

13R156C - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package200
ManufacturerMurata Power Solutions Inc.
Series1300R
PackagingBulk
Part StatusActive
TypeWirewound
Material - Core-
Inductance15mH
Tolerance±10%
Current Rating (Amps)80mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)31Ohm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 85°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension0.374" Dia (9.50mm)
Height - Seated (Max)0.532" (13.50mm)

13R156C - Related Products

More >>
13R686C Murata Power Solutions Inc., 68mH Unshielded Wirewound Inductor 40mA 152Ohm Max Radial, Vertical Cylinder, 1300R View
13R473C Murata Power Solutions Inc., 47µH Unshielded Wirewound Inductor 1.5A 110mOhm Max Radial, Vertical Cylinder, 1300R View
13R153C Murata Power Solutions Inc., 15µH Unshielded Wirewound Inductor 2.5A 42mOhm Max Radial, Vertical Cylinder, 1300R View
13R106C Murata Power Solutions Inc., 10mH Unshielded Wirewound Inductor 85mA 23.8Ohm Max Radial, Vertical Cylinder, 1300R View
13R155C Murata Power Solutions Inc., 1.5mH Unshielded Wirewound Inductor 280mA 3.1Ohm Max Radial, Vertical Cylinder, 1300R View
13R336C Murata Power Solutions Inc., 33mH Unshielded Wirewound Inductor 60mA 68Ohm Max Radial, Vertical Cylinder, 1300R View
13R475C Murata Power Solutions Inc., 4.7mH Unshielded Wirewound Inductor 160mA 9.3Ohm Max Radial, Vertical Cylinder, 1300R View
13R335C Murata Power Solutions Inc., 3.3mH Unshielded Wirewound Inductor 190mA 7Ohm Max Radial, Vertical Cylinder, 1300R View
13R474C Murata Power Solutions Inc., 470µH Unshielded Wirewound Inductor 450mA 1.05Ohm Max Radial, Vertical Cylinder, 1300R View
13R152C Murata Power Solutions Inc., 1.5µH Unshielded Wirewound Inductor 6.3A 8mOhm Max Radial, Vertical Cylinder, 1300R View
13R334C Murata Power Solutions Inc., 330µH Unshielded Wirewound Inductor 580mA 640mOhm Max Radial, Vertical Cylinder, 1300R View
13R333C Murata Power Solutions Inc., 33µH Unshielded Wirewound Inductor 1.8A 92mOhm Max Radial, Vertical Cylinder, 1300R View
