Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TXW Series
Standard Package	500
Manufacturer	Rubycon
Series	TXW
Packaging	Bulk
Part Status	Active
Capacitance	390µF
Tolerance	±20%
Voltage - Rated	160V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.35A @ 120Hz
Ripple Current @ High Frequency	1.89A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	2.264" (57.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

350TXW56MEFC10X40	Rubycon, 56µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
450TXW47MEFC12.5X40	Rubycon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
350TXW47MEFC10X35	Rubycon, 47µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
400TXW100MEFC16X35	Rubycon, 100µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
420TXW100MEFCCC16X40	Rubycon, 100µF 420V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW220MEFC12.5X35	Rubycon, 220µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
250TXW100MEFC12.5X30	Rubycon, 100µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
250TXW180MEFC18X25	Rubycon, 180µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW150MEFC12.5X25	Rubycon, 150µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
250TXW390MEFC18X45	Rubycon, 390µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
100TXW150MEFC10X30	Rubycon, 150µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, TXW	View
160TXW68MEFC8X30	Rubycon, 68µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View

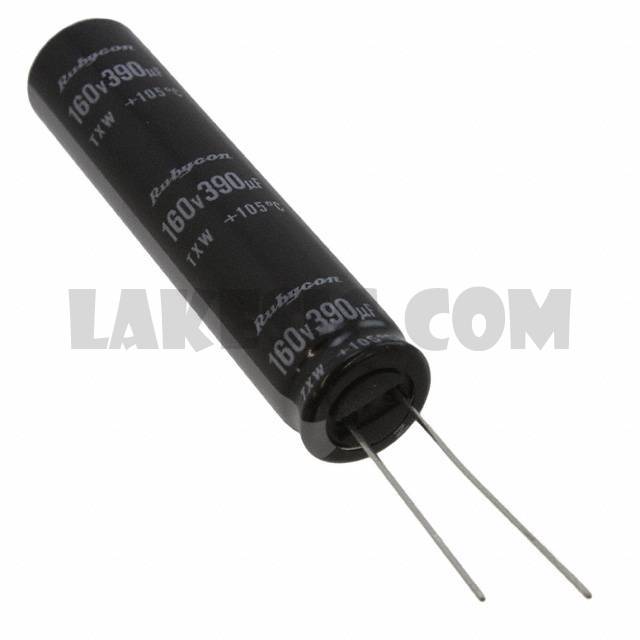

160TXW390MEFC12.5X55

Part Number160TXW390MEFC12.5X55
