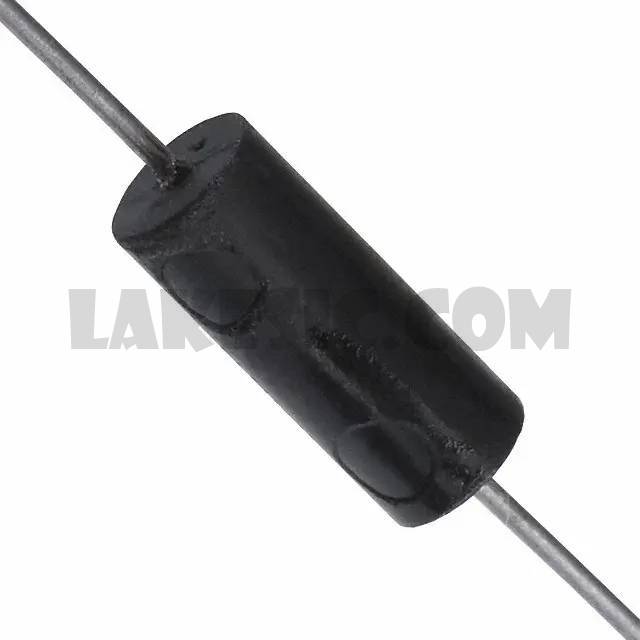

1641R-474K

1641R-474K

Part Number1641R-474K

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 470UH 94MA 9.5 OHM TH

Datasheet1641(R) Series

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description470µH Shielded Molded Inductor 94mA 9.5Ohm Max Axial

To learn about the specification of 1641R-474K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1641R-474K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1641R-474K.
We are offering 1641R-474K for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1641R-474K - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	1641(R) Series
Standard Package	500
Manufacturer	API Delevan Inc.
Series	1641R
Packaging	Bulk
Part Status	Active
Type	Molded
Material - Core	Ferrite
Inductance	470µH
Tolerance	±10%
Current Rating (Amps)	94mA
Current - Saturation	58mA
Shielding	Shielded
DC Resistance (DCR)	9.5Ohm Max
Q @ Freq	60 @ 790kHz
Frequency - Self Resonant	5.7MHz
Ratings	-
Operating Temperature	-55°C ~ 105°C
Inductance Frequency - Test	790kHz
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max)	-
