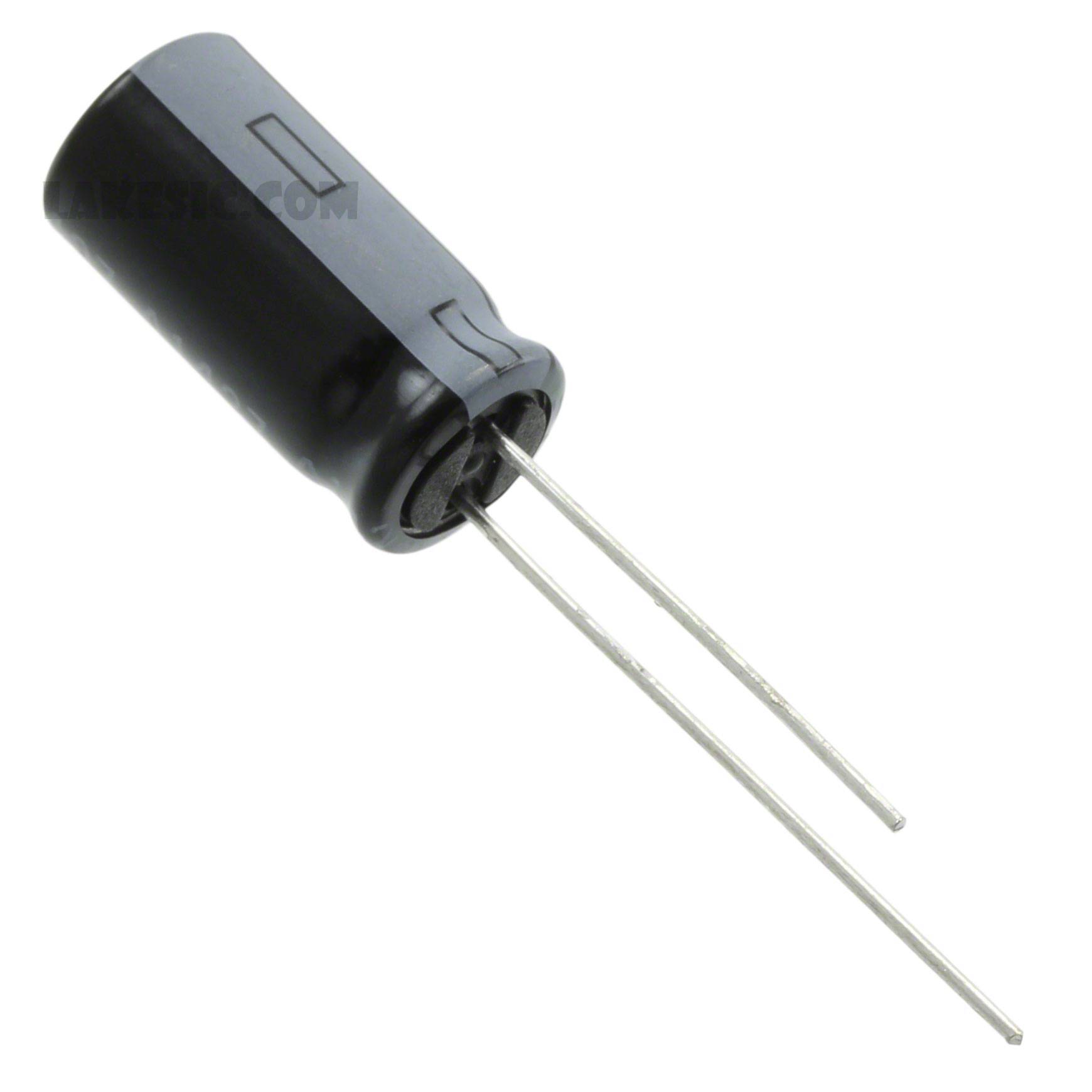

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLH Series Datasheet
Standard Package	1000
Manufacturer	Rubycon
Series	ZLH
Packaging	Bulk
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	8000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	687.5mA @ 120Hz
Ripple Current @ High Frequency	1.25A @ 100kHz
Impedance	45 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

6.3ZLH220MEFCTA5X11	Rubycon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLH	View
50ZLH560MEFC12.5X25	Rubycon, 560µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
6.3ZLH3900MEFC12.5X20	Rubycon, 3900µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
6.3ZLH220MEFCTA5X11	Rubycon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLH	View
35ZLH470MEFCT810X16	Rubycon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
63ZLH470MEFC12.5X25	Rubycon, 470µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
35ZLH330MEFCT810X12.5	Rubycon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
35ZLH100MEFC6.3X11	Rubycon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLH	View
63ZLH47MEFC6.3X11	Rubycon, 47µF 63V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLH	View
10ZLH1000MEFCT78X16	Rubycon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View
35ZLH1500MEFCG412.5X30	Rubycon, 1500µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
16ZLH3900MEFC12.5X35	Rubycon, 3900µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View

16ZLH680MEFC8X16

Part Number16ZLH680MEFC8X16
