Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLJ Series
Standard Package	2000
Manufacturer	Rubycon
Series	ZLJ
Packaging	Bulk
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	9000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	660mA @ 120Hz
Ripple Current @ High Frequency	1.2A @ 100kHz
Impedance	75 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

10ZLJ3300M12.5X25	Rubycon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
35ZLJ1200M12.5X25	Rubycon, 1200µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
63ZLJ2700M18X40	Rubycon, 2700µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
16ZLJ470M8X11.5	Rubycon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 9000 Hrs @ 105°C, ZLJ	View
25ZLJ560M8X20	Rubycon, 560µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
16ZLJ270M6.3X11	Rubycon, 270µF 16V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, ZLJ	View
100ZLJ150MG412.5X20	Rubycon, 150µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
50ZLJ1500M16X25	Rubycon, 1500µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
50ZLJ680M12.5X25	Rubycon, 680µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
10ZLJ150MTA5X11	Rubycon, 150µF 10V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, ZLJ	View
100ZLJ270MGC16X20	Rubycon, 270µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
100ZLJ820M18X40	Rubycon, 820µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View

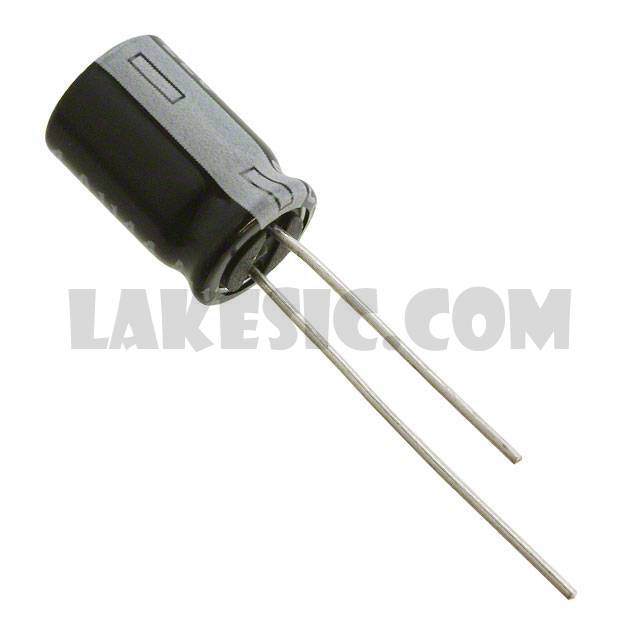

16ZLJ470M8X11.5

Part Number16ZLJ470M8X11.5
