Categories	Discrete Semiconductor Products / Diodes - Zener - Single
Datasheet	1N49xxUS, 59xxUS, 66xxUS
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
Voltage - Zener (Nom) (Vz)	6.8V
Tolerance	±5%
Power - Max	5W
Impedance (Max) (Zzt)	1 Ohms
Current - Reverse Leakage @ Vr	150µA @ 5.2V
Voltage - Forward (Vf) (Max) @ If	1.5V @ 1A
Operating Temperature	-65°C ~ 175°C
Mounting Type	Surface Mount

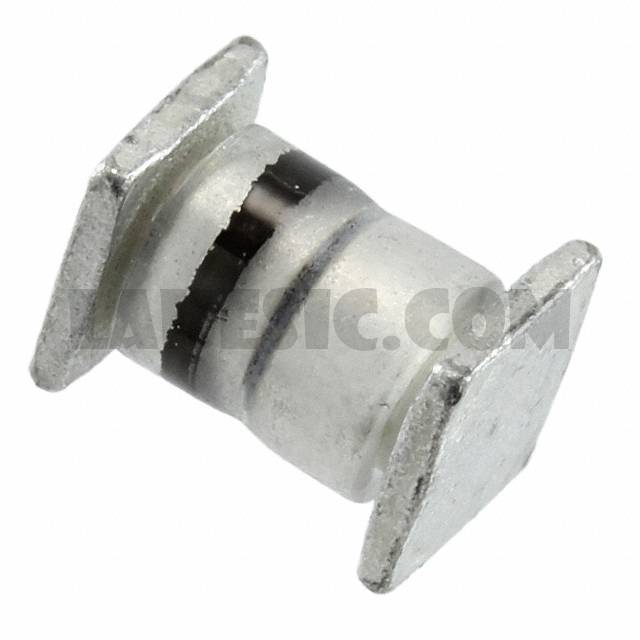

Package / Case	E-MELF
Supplier Device Package	D-5B
