Categories	Discrete Semiconductor Products / Diodes - Zener - Single
Datasheet	1N53xx(B, G) Series
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Voltage - Zener (Nom) (Vz)	5.1V
Tolerance	±5%
Power - Max	5W
Impedance (Max) (Zzt)	1.5 Ohms
Current - Reverse Leakage @ Vr	1µA @ 1V
Voltage - Forward (Vf) (Max) @ If	1.2V @ 1A
Operating Temperature	-65°C ~ 200°C
Mounting Type	Through Hole

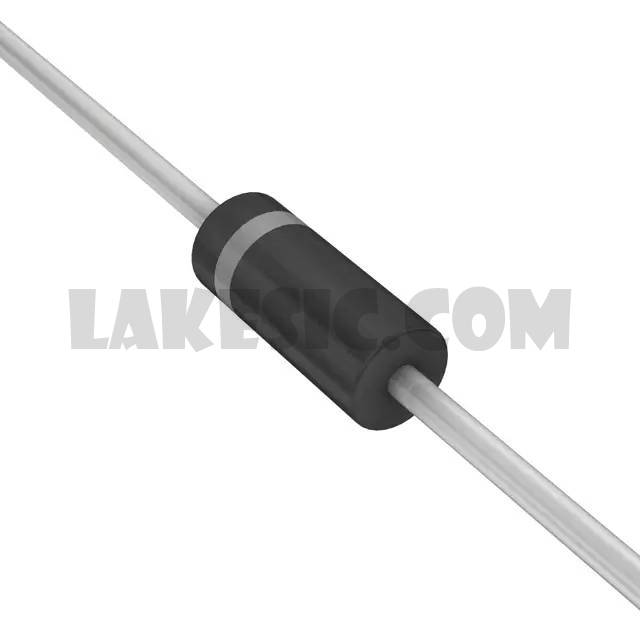

Package / Case	T-18, Axial
Supplier Device Package	Axial
Base Part Number	1N5338
