Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1SS416
Standard Package	10000
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	100mA
Voltage - Forward (Vf) (Max) @ If	500mV @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	50µA @ 30V
Capacitance @ Vr, F	15pF @ 0V, 1MHz
Mounting Type	Surface Mount

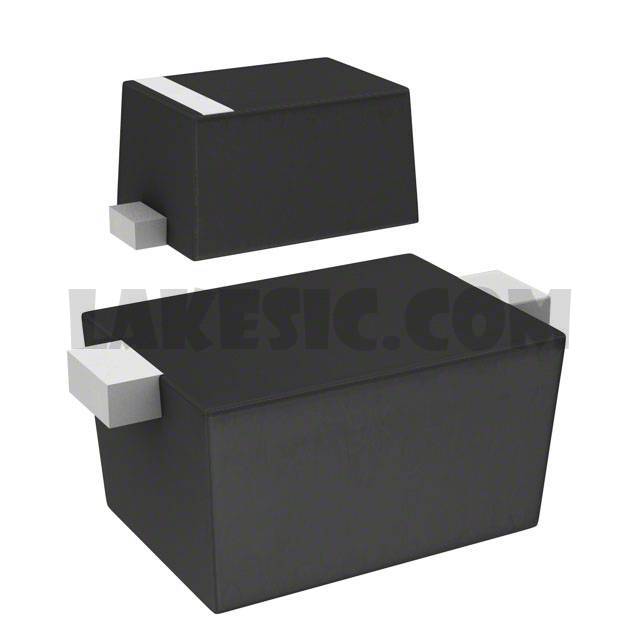

Package / Case	2-SMD, Flat Lead
Supplier Device Package	fSC
Operating Temperature - Junction	125°C (Max)
Base Part Number	1SS416
