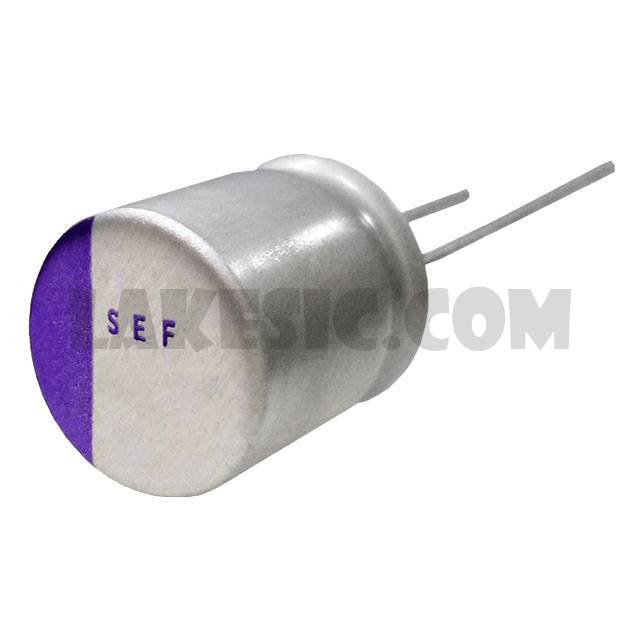

20SEF120M

Part Number20SEF120M

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM POLY 120UF 20% 20V T/H

DatasheetSEF Series Datasheet*

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description120µF 20V Aluminum Polymer Capacitor Radial, Can 25mOhm 1000 Hrs @ 125°C

To learn about the specification of 20SEF120M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 20SEF120M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 20SEF120M.
We are offering 20SEF120M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

20SEF120M - Product Attributes

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	SEF Series Datasheet*
Standard Package	500
Manufacturer	Panasonic Electronic Components
Series	OS-CON™, SEF
Packaging	Bulk
Part Status	Active
Type	Polymer
Capacitance	120µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	25mOhm
Lifetime @ Temp.	1000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	50.5mA @ 120Hz
Ripple Current @ High Frequency	1.01A @ 100kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
