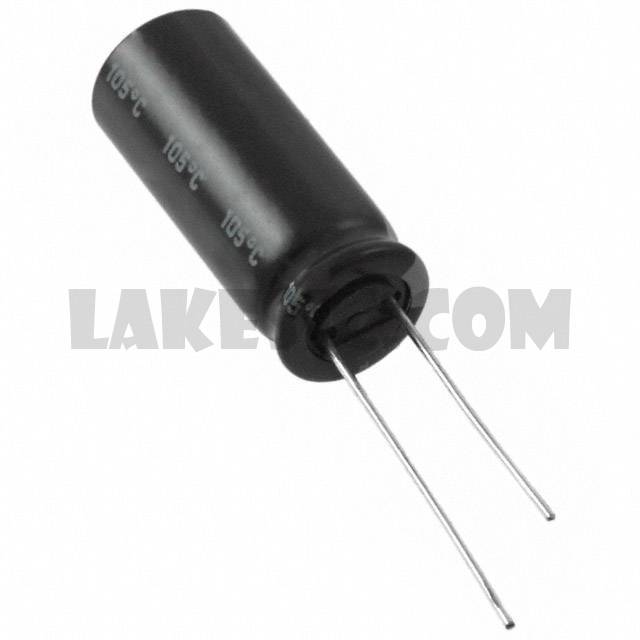

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TXW Series
Standard Package	1000
Manufacturer	Rubycon
Series	TXW
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	250V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	690mA @ 120Hz
Ripple Current @ High Frequency	966mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.280" (32.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

220TXW330MEFC18X35	Rubycon, 330µF 220V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
200TXW180MEFC16X25	Rubycon, 180µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW390MEFC12.5X55	Rubycon, 390µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW180MEFC10X50	Rubycon, 180µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW820MEFC18X50	Rubycon, 820µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
63TXW680MEFC10X50	Rubycon, 680µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, TXW	View
160TXW330MEFC12.5X50	Rubycon, 330µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
450TXW47MEFC16X25	Rubycon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
250TXW470MEFC18X50	Rubycon, 470µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW150MEFC10X40	Rubycon, 150µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
450TXW47MEFC12.5X40	Rubycon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
250TXW180MEFC18X25	Rubycon, 180µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View

250TXW100MEFC12.5X30

Part Number250TXW100MEFC12.5X30
