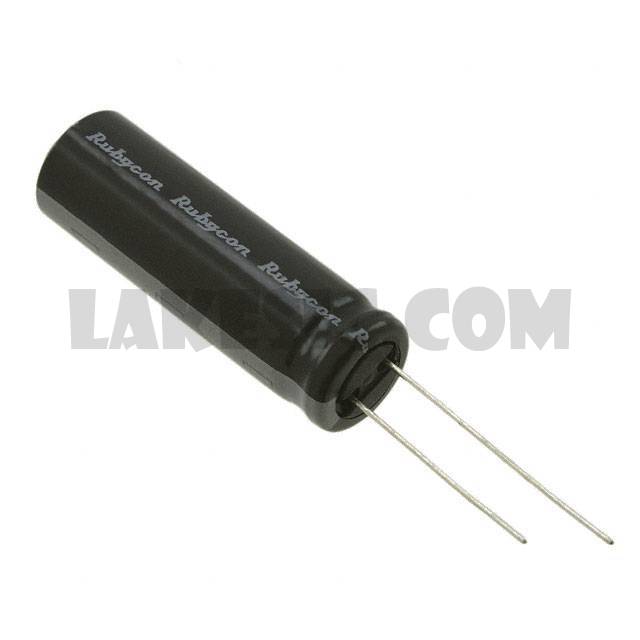

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXG Series
Standard Package	600
Manufacturer	Rubycon
Series	YXG
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.016A @ 120Hz
Ripple Current @ High Frequency	2.88A @ 100kHz
Impedance	20 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

16YXG1000MEFC12.5X16	Rubycon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
25YXG4700MEFC18X35.5	Rubycon, 4700µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
25YXG330MEFCT810X12.5	Rubycon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
25YXG220MEFC6.3X11	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, YXG	View
16YXG3900MEFC16X25	Rubycon, 3900µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
100YXG47MEFC10X12.5	Rubycon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
50YXG220MEFCT810X16	Rubycon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
6.3YXG1500MEFC10X20	Rubycon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
25YXG1000MEFC12.5X20	Rubycon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
10YXG560MEFC10X12.5	Rubycon, 560µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
100YXG100MEFC10X23	Rubycon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
25YXG330MEFC10X12.5	Rubycon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View

25YXG2200MEFC12.5X35

Part Number25YXG2200MEFC12.5X35
