Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXG Series
Standard Package	200
Manufacturer	Rubycon
Series	YXG
Packaging	Bulk
Part Status	Active
Capacitance	1200µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.212A @ 120Hz
Ripple Current @ High Frequency	2.02A @ 100kHz
Impedance	40 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

6.3YXG1000MEFC8X16	Rubycon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
25YXG330MEFCT78X11.5	Rubycon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
63YXG1200MEFC16X40	Rubycon, 1200µF 63V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
10YXG3300MEFC12.5X25	Rubycon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
25YXG330MEFCT810X12.5	Rubycon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
6.3YXG1500MEFC10X20	Rubycon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
50YXG220MEFC10X16	Rubycon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
50YXG56MEFC6.3X11	Rubycon, 56µF 50V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, YXG	View
10YXG2200MEFC12.5X20	Rubycon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
35YXG150MEFC8X11.5	Rubycon, 150µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
63YXG56MEFC8X11.5	Rubycon, 56µF 63V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
100YXG390MEFC18X25	Rubycon, 390µF 100V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View

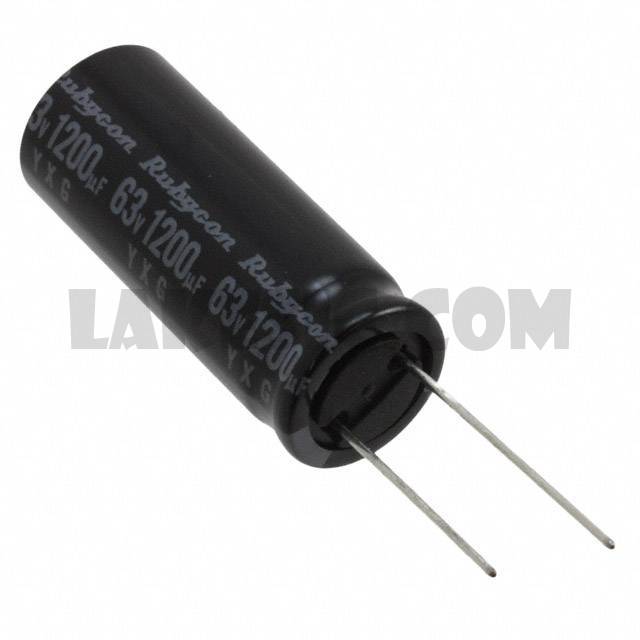

63YXG1200MEFC16X40
