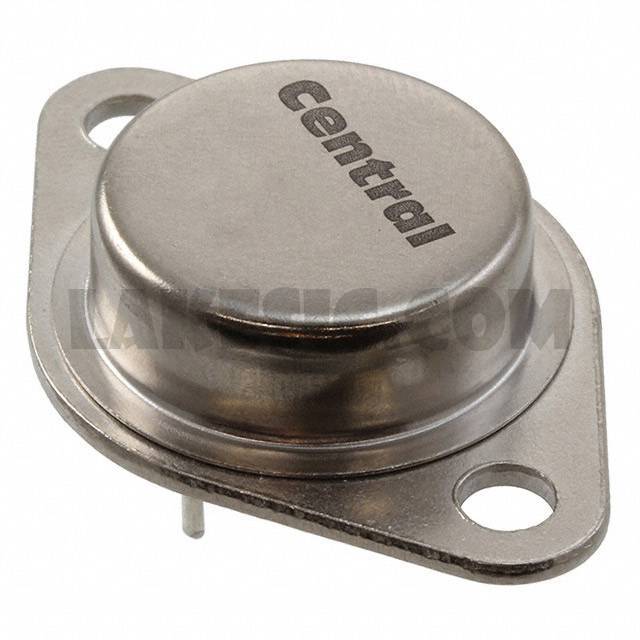

2N3791

2N3791

Part Number2N3791

ManufacturerCentral Semiconductor Corp

DescriptionTRANS PNP 60V 10A TO-3

Datasheet2M3789 thru 2N3792

Package / CaseTO-204AA, TO-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 60V 10A 4MHz 150W Through Hole TO-3

To learn about the specification of 2N3791, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N3791 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N3791.
We are offering 2N3791 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N3791 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2M3789 thru 2N3792
Standard Package	20
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	10A
Voltage - Collector Emitter Breakdown (Max)	60V
Vce Saturation (Max) @ Ib, Ic	1V @ 500mA, 5A
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 1A, 2V
Power - Max	150W
Frequency - Transition	4MHz
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-204AA, TO-3
Supplier Device Package	TO-3
