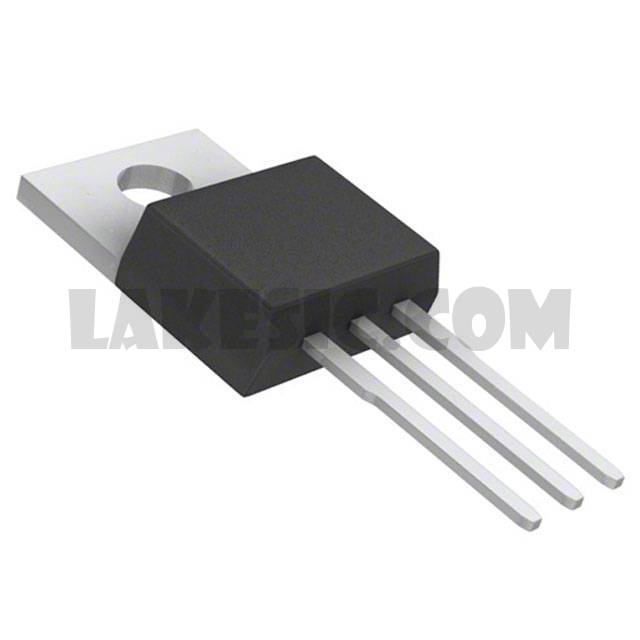

2N6107

2N6107

Part Number2N6107

ManufacturerCentral Semiconductor Corp

DescriptionTRANS PNP 70V 7A TO-220

Datasheet2N6107,09,11,2N6288,90,92

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 70V 7A 4MHz 40W Through Hole TO-220

To learn about the specification of 2N6107, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N6107 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N6107.
We are offering 2N6107 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N6107 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2N6107,09,11,2N6288,90,92
Standard Package	400
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	7A
Voltage - Collector Emitter Breakdown (Max)	70V
Vce Saturation (Max) @ Ib, Ic	3.5V @ 3A, 7A
Current - Collector Cutoff (Max)	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 2A, 4V
Power - Max	40W
Frequency - Transition	4MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220
