2N7002DWH6327XTSA1


2N7002DWH6327XTSA1

Part Number2N7002DWH6327XTSA1

Manufacturer

Description

Datasheet

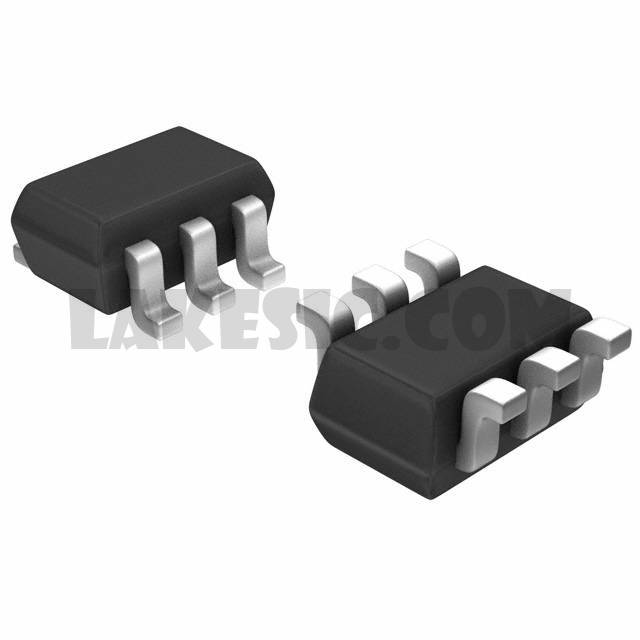

Package / Case6-VSSOP, SC-88, SOT-363

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

2N7002DWH6327XTSA1 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet
Standard Package3000
ManufacturerInfineon Technologies
SeriesOptiMOS™
PackagingTape & Reel (TR)
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C300mA
Rds On (Max) @ Id, Vgs3Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds20pF @ 25V
Power - Max500mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-VSSOP, SC-88, SOT-363
Supplier Device PackagePG-SOT363-6
