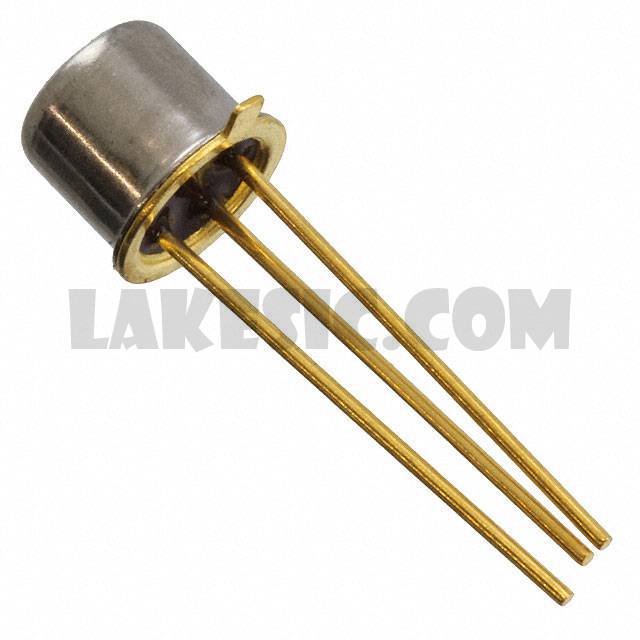

2N720A

2N720A

Part Number2N720A

ManufacturerMicrosemi Corporation

DescriptionTRANS NPN 80V 0.5A TO-18

Datasheet2N720A, 2N1893(S)

Package / CaseTO-206AA, TO-18-3 Metal Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 80V 500mA 500mW Through Hole TO-18 (TO-206AA)

To learn about the specification of 2N720A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N720A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N720A.
We are offering 2N720A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N720A - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2N720A, 2N1893(S)
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	5V @ 15mA, 150mA
Current - Collector Cutoff (Max)	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 150mA, 10V
Power - Max	500mW
Frequency - Transition	-
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-206AA, TO-18-3 Metal Can
Supplier Device Package	TO-18 (TO-206AA)
