2SD1060S-1E

2SD1060S-1E

Part Number2SD1060S-1E

ManufacturerON Semiconductor

DescriptionTRANS NPN 50V 5A

Datasheet2SD1060

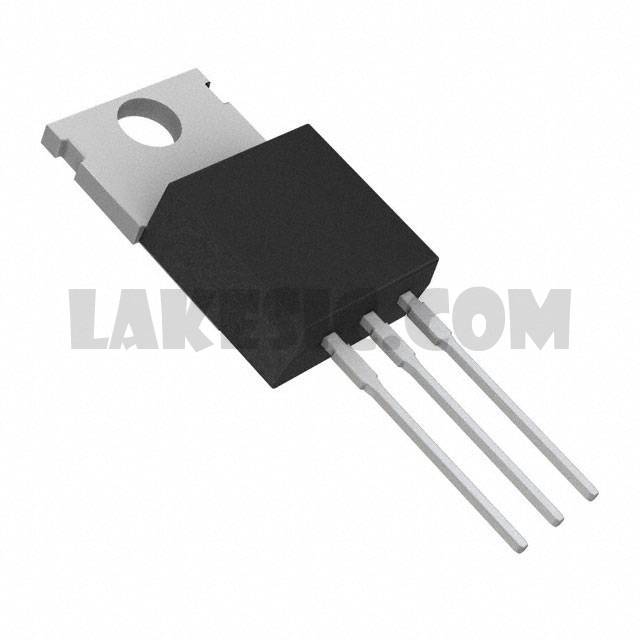

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 50V 5A 30MHz 1.75W Through Hole TO-220-3

To learn about the specification of 2SD1060S-1E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SD1060S-1E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SD1060S-1E.
We are offering 2SD1060S-1E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SD1060S-1E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2SD1060
Standard Package	50
Manufacturer	ON Semiconductor
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	5A
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	300mV @ 300mA, 3A
Current - Collector Cutoff (Max)	100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	140 @ 1A, 2V
Power - Max	1.75W
Frequency - Transition	30MHz
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220-3
