2SK3746-1E

2SK3746-1E

Part Number2SK3746-1E

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 1500V 2A

Datasheet2SK3746

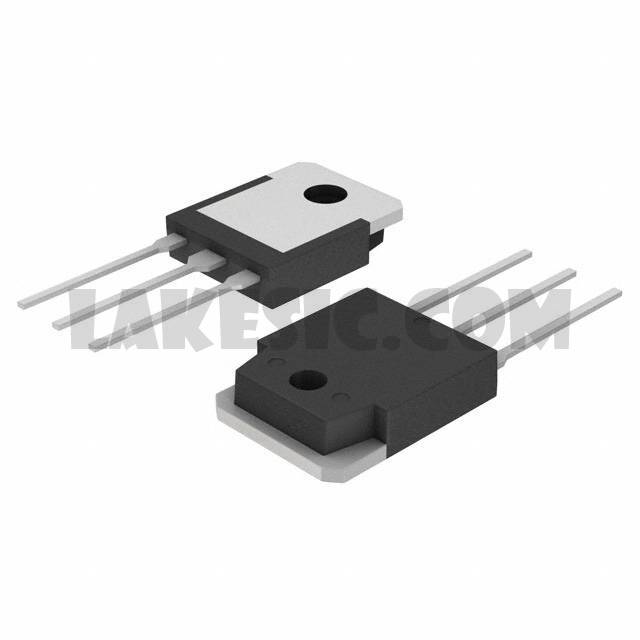

Package / CaseTO-3P-3, SC-65-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1500V 2A (Ta) 2.5W (Ta), 110W (Tc) Through Hole TO-3P-3L

To learn about the specification of 2SK3746-1E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SK3746-1E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SK3746-1E.
We are offering 2SK3746-1E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SK3746-1E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	2SK3746
Standard Package	30
Manufacturer	ON Semiconductor
Series	-
Packaging	Tube
Part Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1500V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	13Ohm @ 1A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	37.5nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	380pF @ 30V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 110W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3P-3L
Package / Case	TO-3P-3, SC-65-3
