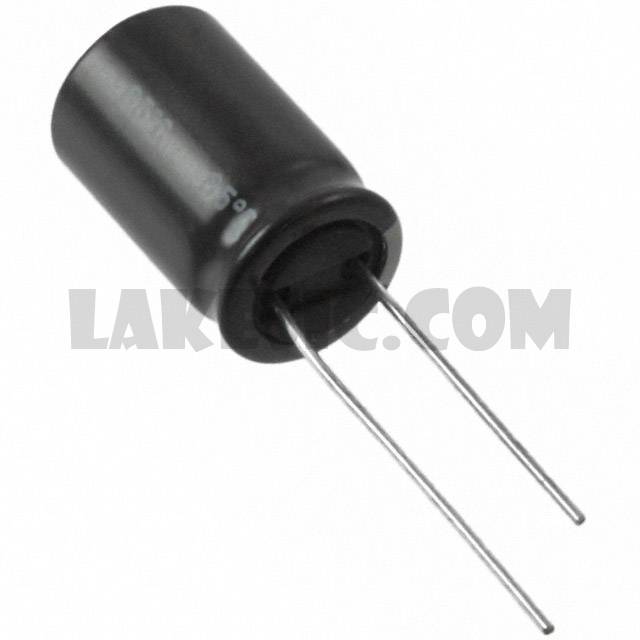

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	PK Series
Standard Package	1000
Manufacturer	Rubycon
Series	PK
Packaging	Bulk
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	910mA @ 120Hz
Ripple Current @ High Frequency	1.092A @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.709" (18.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

16PK4700MEFC12.5X25	Rubycon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
25PK10000MEFC18X35.5	Rubycon, 10000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
350PK22MEFC12.5X20	Rubycon, 22µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
400PK33MEFC12.5X25	Rubycon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
25PK470MEFC8X11.5	Rubycon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
10PK6800MEFC12.5X25	Rubycon, 6800µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
450PK100MEFC18X40	Rubycon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
6.3PK680MEFC6.3X11	Rubycon, 680µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
16PK100MEFCTA5X11	Rubycon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
450PK1MEFC6.3X11	Rubycon, 1µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
250PK33MEFCT810X20	Rubycon, 33µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
160PK100MEFC12.5X25	Rubycon, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View

35PK680MEFC10X16

Part Number35PK680MEFC10X16
