Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXJ Series
Standard Package	1000
Manufacturer	Rubycon
Series	YXJ
Packaging	Bulk
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.425A @ 120Hz
Ripple Current @ High Frequency	1.9A @ 100kHz
Impedance	41 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

100YXJ220M12.5X25	Rubycon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
25YXJ2200M12.5X25	Rubycon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
25YXJ47MTA5X11	Rubycon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXJ	View
25YXJ47MTA5X11	Rubycon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXJ	View
35YXJ220MCA8X11.5	Rubycon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXJ	View
35YXJ47M5X11	Rubycon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXJ	View
35YXJ1000M12.5X20	Rubycon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
16YXJ220MT16.3X11	Rubycon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXJ	View
10YXJ2200M10X20	Rubycon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, YXJ	View
16YXJ330M6.3X11	Rubycon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXJ	View
63YXJ100M10X12.5	Rubycon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
50YXJ220MCA10X16	Rubycon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View

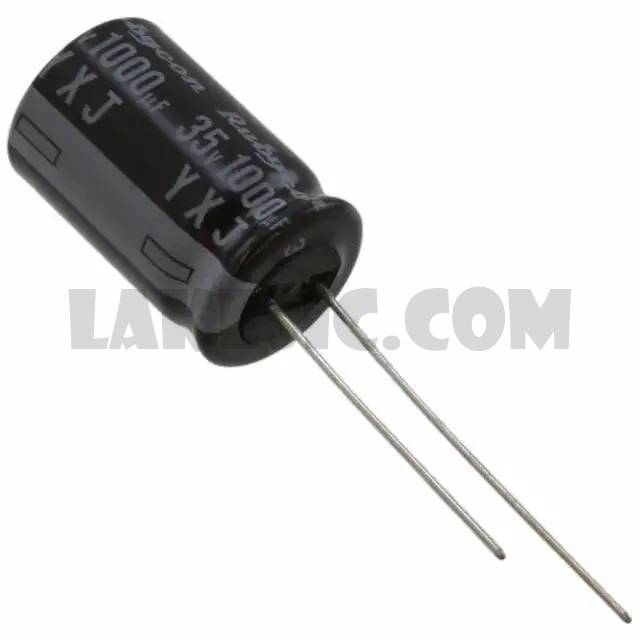

35YXJ1000M12.5X20

Part Number35YXJ1000M12.5X20
