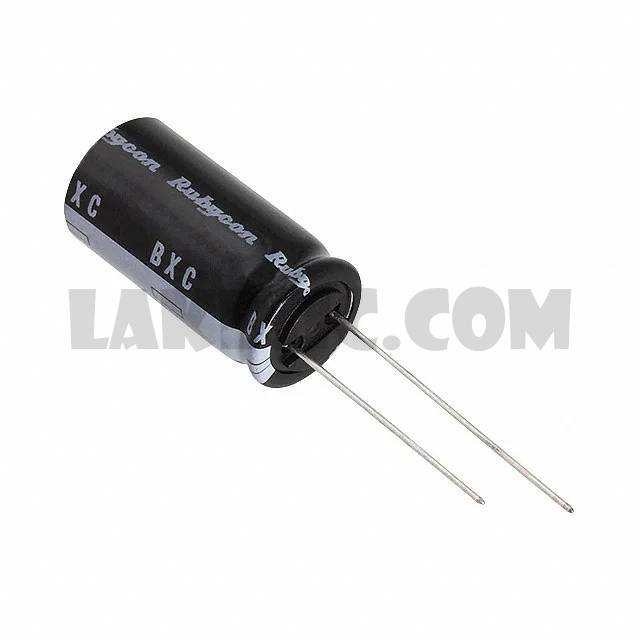

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	BXC Series
Standard Package	1000
Manufacturer	Rubycon
Series	BXC
Packaging	Bulk
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	240mA @ 120Hz
Ripple Current @ High Frequency	600mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

400BXC10MEFC10X20	Rubycon, 10µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
450BXC10MEFC10X20	Rubycon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
250BXC10MEFC10X16	Rubycon, 10µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
250BXC22MEFC10X16	Rubycon, 22µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
350BXC6.8MEFC10X16	Rubycon, 6.8µF 350V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
350BXC18MEFC10X20	Rubycon, 18µF 350V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
350BXC47MEFC16X20	Rubycon, 47µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXC	View
250BXC100MEFC16X25	Rubycon, 100µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXC	View
450BXC4.7MEFC10X16	Rubycon, 4.7µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
450BXC10MEFCT810X20	Rubycon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
450BXC5R6MEFC10X20	Rubycon, 5.6µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXC	View
500BXC10MEFC12.5X20	Rubycon, 10µF 500V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXC	View

450BXC22MEFC12.5X25

Part Number450BXC22MEFC12.5X25
