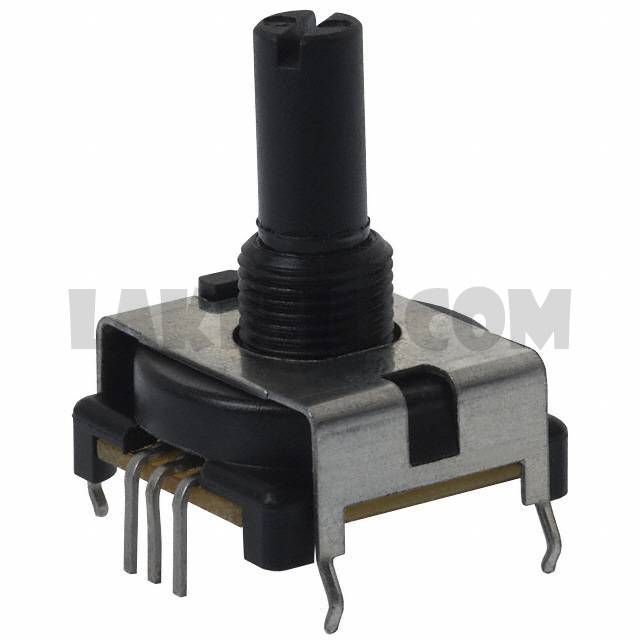

574SX1M48S103SD


574SX1M48S103SD

Part Number574SX1M48S103SD

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

574SX1M48S103SD - Product Attributes

Categories Potentiometers, Variable Resistors / Rotary Potentiometers, Rheostats
Datasheet
Standard Package100
ManufacturerHoneywell Sensing and Productivity Solutions
Series574
PackagingBulk
Part StatusNot For New Designs
Resistance (Ohms)10k
Tolerance±20%
Power (Watts)0.5W, 1/2W
Built in SwitchNone
Number of Turns1
TaperLinear
Number of Gangs1
Adjustment TypeTop Adjustment
Temperature Coefficient-
Rotation300°
Resistive MaterialConductive Plastic
Termination StylePC Pins, Board Locks
Actuator TypeSlotted
Actuator Length0.750" (19.05mm)
Actuator Diameter0.250" (6.35mm)
Bushing ThreadM9 x 0.75
Mounting TypePanel Mount
Size - BodySquare - 0.830" x 0.830" Face x 0.363" H (21.08mm x 21.08mm x 9.22mm)
