Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	RX30 Series
Standard Package	1000
Manufacturer	Rubycon
Series	RX30
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 130°C
Operating Temperature	-40°C ~ 130°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	315mA @ 120Hz
Ripple Current @ High Frequency	450mA @ 100kHz
Impedance	200 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.709" (18.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

63RX3047M10X12.5	Rubycon, 47µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
100RX3010MTA8X11.5	Rubycon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
200RX3022M10X16	Rubycon, 22µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
35RX30100MT78X11.5	Rubycon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
50RX3047M8X11.5	Rubycon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
50RX302200M18X40	Rubycon, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View
200RX3010M8X16	Rubycon, 10µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
35RX30100M8X11.5	Rubycon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
100RX304R7M8X11.5	Rubycon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
200RX306.8M8X16	Rubycon, 6.8µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
35RX303300M18X35.5	Rubycon, 3300µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View
200RX304.7M6.3X11	Rubycon, 4.7µF 200V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 130°C, RX30	View

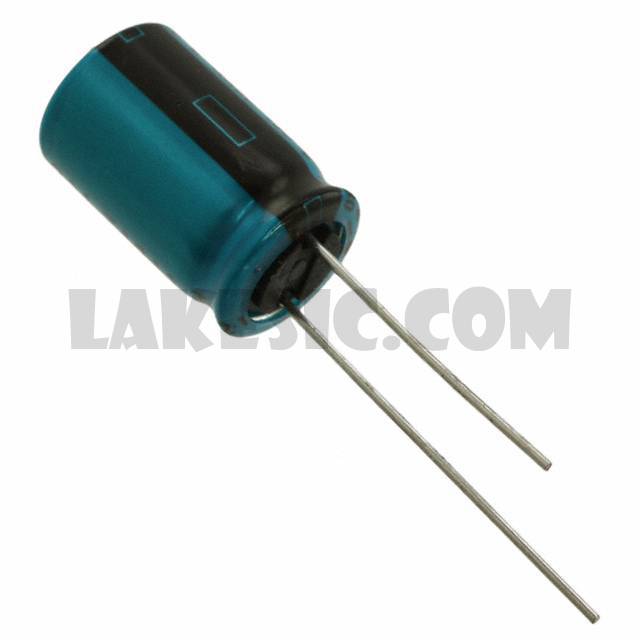

63RX30100M10X16

Part Number63RX30100M10X16
