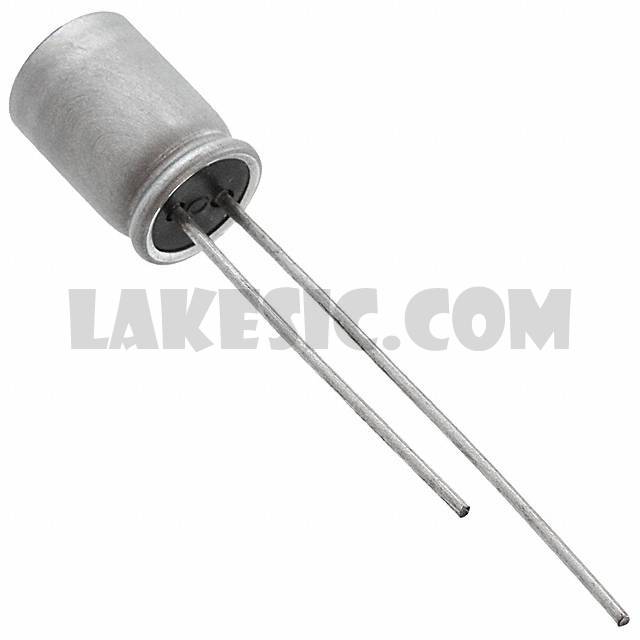

6SEPC560MW

Part Number6SEPC560MW

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM POLY 560UF 20% 6.3V T/H

Datasheet6SEPC560MW View All Specifications

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description560µF 6.3V Aluminum Polymer Capacitor Radial, Can 7mOhm 5000 Hrs @ 105°C

To learn about the specification of 6SEPC560MW, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 6SEPC560MW with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 6SEPC560MW.
We are offering 6SEPC560MW for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

6SEPC560MW - Product Attributes

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	6SEPC560MW View All Specifications
Standard Package	500
Manufacturer	Panasonic Electronic Components
Series	OS-CON™, SEPC
Packaging	Bulk
Part Status	Active
Type	Polymer
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	7mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	280mA @ 120Hz
Ripple Current @ High Frequency	5.6A @ 100kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.354" (9.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
