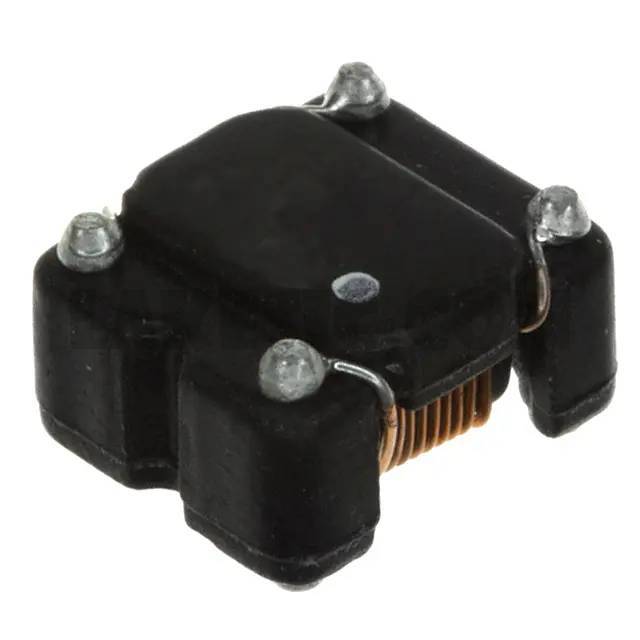

744272251


744272251

Part Number744272251

Manufacturer

Description

Datasheet

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744272251 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package1
ManufacturerWurth Electronics Inc.
SeriesWE-SL5
PackagingCut Tape (CT)
Part StatusActive
Filter TypePower, Signal Line
Number of Lines2
Impedance @ Frequency970 Ohms @ 15MHz
Inductance @ Frequency250µH @ 100kHz
Current Rating (Max)2A
DC Resistance (DCR) (Max)35mOhm
Voltage Rating - DC80V
Voltage Rating - AC-
Operating Temperature-40°C ~ 125°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Size / Dimension0.394" L x 0.343" W (10.00mm x 8.70mm)
Height (Max)0.256" (6.50mm)
Package / CaseHorizontal, 4 PC Pad
