Home/Product Catalog/Inductors, Coils, Chokes / Fixed Inductors/  744741101

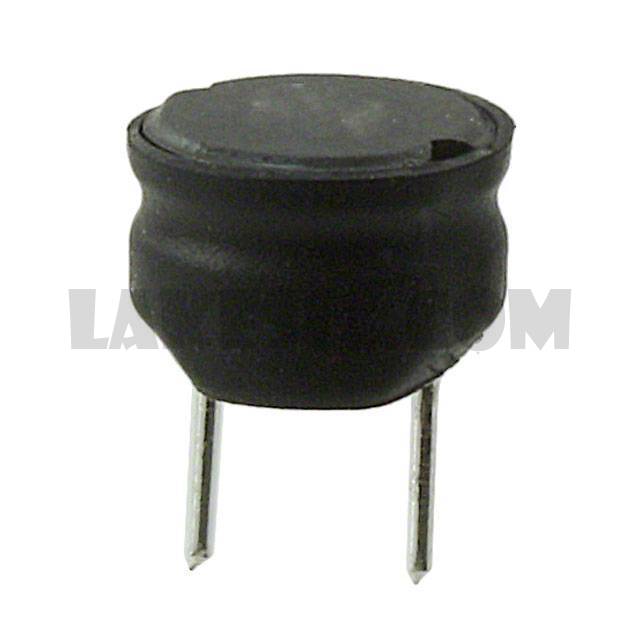

744741101


744741101

Part Number744741101

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744741101 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package140
ManufacturerWurth Electronics Inc.
SeriesWE-TI
PackagingTray
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance100µH
Tolerance±10%
Current Rating (Amps)1.1A
Current - Saturation900mA
ShieldingUnshielded
DC Resistance (DCR)1Ohm Max
Q @ Freq-
Frequency - Self Resonant9.4MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension0.335" Dia (8.50mm)
Height - Seated (Max)0.236" (6.00mm)
