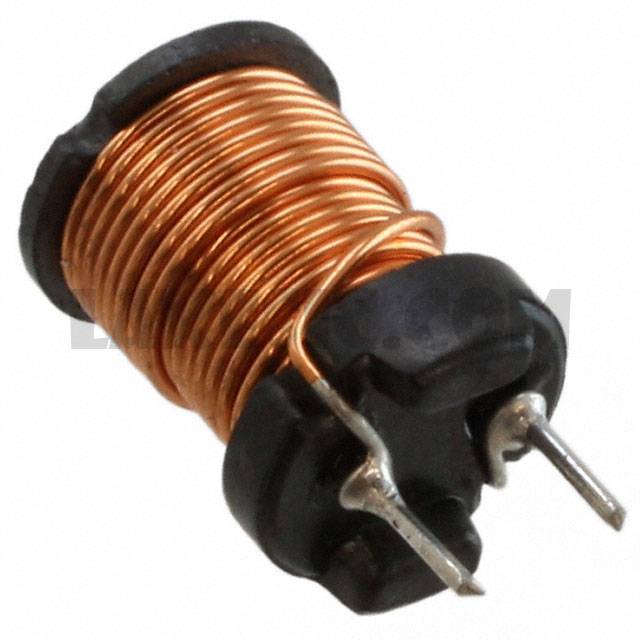

7447480101

Part Number7447480101

ManufacturerWurth Electronics Inc.

DescriptionFIXED IND 100UH 2.4A 125 MOHM TH

Datasheet7447480101

Package / CaseRadial, Vertical Cylinder (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100µH Unshielded Wirewound Inductor 2.4A 125mOhm Max Radial, Vertical Cylinder (Open)

To learn about the specification of 7447480101, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 7447480101 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 7447480101.
We are offering 7447480101 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

7447480101 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	7447480101
Standard Package	80
Manufacturer	Wurth Electronics Inc.
Series	WE-TI
Packaging	Tray
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	100µH
Tolerance	±10%
Current Rating (Amps)	2.4A
Current - Saturation	2.5A
Shielding	Unshielded
DC Resistance (DCR)	125mOhm Max
Q @ Freq	-
Frequency - Self Resonant	4.1MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder (Open)
Supplier Device Package	-
Size / Dimension	0.413" Dia (10.50mm)
Height - Seated (Max)	0.571" (14.50mm)
