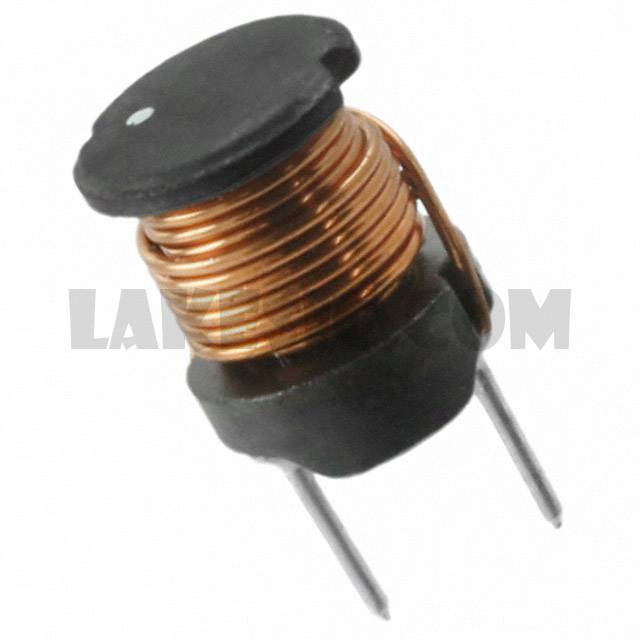

744772220

744772220

Part Number744772220

ManufacturerWurth Electronics Inc.

DescriptionFIXED IND 22UH 2.3A 55 MOHM TH

Datasheet744772220

Package / CaseRadial, Vertical Cylinder (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µH Unshielded Wirewound Inductor 2.3A 55mOhm Max Radial, Vertical Cylinder (Open)

To learn about the specification of 744772220, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744772220 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744772220.
We are offering 744772220 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

744772220 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	744772220
Standard Package	140
Manufacturer	Wurth Electronics Inc.
Series	WE-TI
Packaging	Tray
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22µH
Tolerance	±10%
Current Rating (Amps)	2.3A
Current - Saturation	3.6A
Shielding	Unshielded
DC Resistance (DCR)	55mOhm Max
Q @ Freq	-
Frequency - Self Resonant	12.4MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder (Open)
Supplier Device Package	-
Size / Dimension	0.307" Dia (7.80mm)
Height - Seated (Max)	0.394" (10.00mm)
