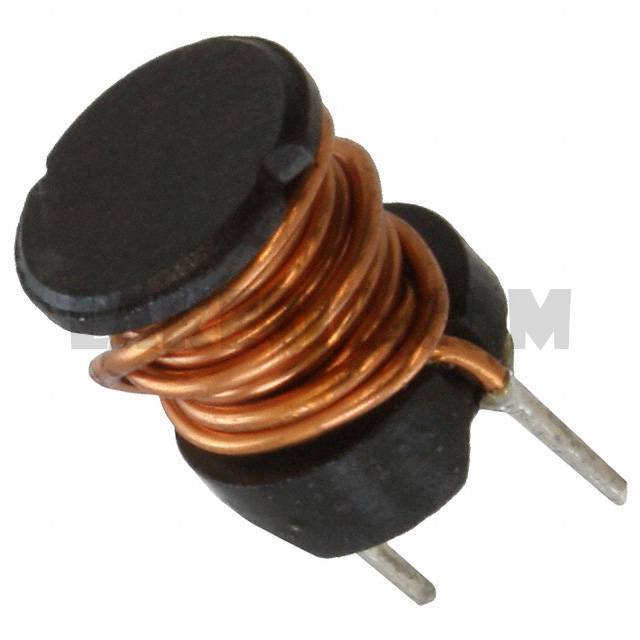

744772100


744772100

Part Number744772100

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744772100 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package140
ManufacturerWurth Electronics Inc.
SeriesWE-TI
PackagingTray
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance10µH
Tolerance±15%
Current Rating (Amps)4.2A
Current - Saturation5A
ShieldingUnshielded
DC Resistance (DCR)40mOhm Max
Q @ Freq-
Frequency - Self Resonant23.6MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder (Open)
Supplier Device Package-
Size / Dimension0.307" Dia (7.80mm)
Height - Seated (Max)0.394" (10.00mm)
