Categories	Inductors, Coils, Chokes / Fixed Inductors

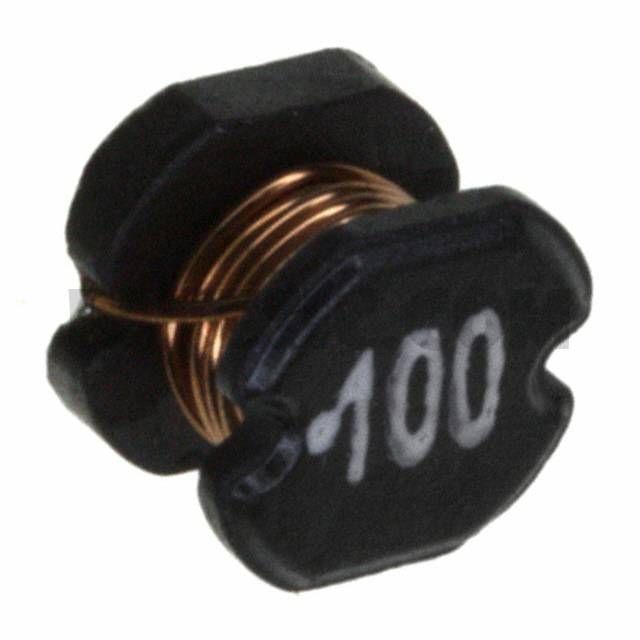

Datasheet	74477410
Standard Package	1500
Manufacturer	Wurth Electronics Inc.
Series	WE-PD2
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10µH
Tolerance	±20%
Current Rating (Amps)	2.2A
Current - Saturation	2.5A
Shielding	Unshielded
DC Resistance (DCR)	100mOhm Max
Q @ Freq	-
Frequency - Self Resonant	26MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	1kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max)	0.191" (4.85mm)
