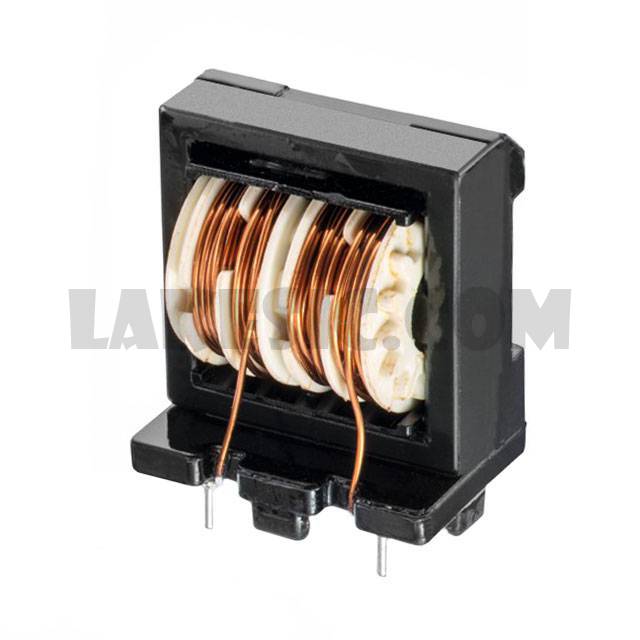

744866563

744866563

Part Number744866563

ManufacturerWurth Electronics Inc.

DescriptionCMC 56MH 1.5A 2LN TH

Datasheet744866563 Drawing

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description56mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 530mOhm

To learn about the specification of 744866563, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744866563 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744866563.
We are offering 744866563 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

744866563 - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	744866563 Drawing
Standard Package	28
Manufacturer	Wurth Electronics Inc.
Series	WE-FCL
Packaging	Bulk
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	56mH @ 10kHz
Current Rating (Max)	1.5A
DC Resistance (DCR) (Max)	530mOhm
Voltage Rating - DC	-
Voltage Rating - AC	250V
Operating Temperature	-40°C ~ 125°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	1.457" L x 1.024" W (37.00mm x 26.00mm)
Height (Max)	1.772" (45.00mm)
Package / Case	Vertical, 4 PC Pin
