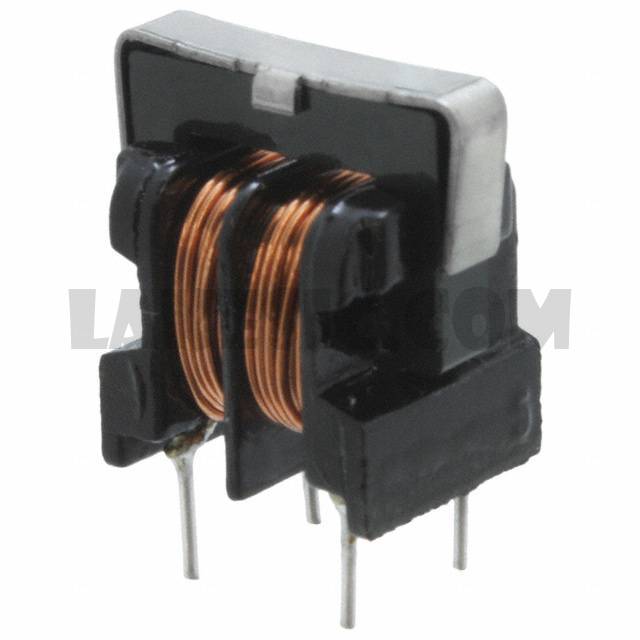

7514-RC

7514-RC

Part Number7514-RC

ManufacturerBourns Inc.

DescriptionCOMMON MODE CHOKE 20MH 1A 2LN TH

Datasheet7400,7500 Series

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description20mH @ 1kHz 2 Line Common Mode Choke Through Hole 1A DCR 490mOhm

To learn about the specification of 7514-RC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 7514-RC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 7514-RC.
We are offering 7514-RC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

7514-RC - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	7400,7500 Series
Standard Package	1200
Manufacturer	Bourns Inc.
Series	7500
Packaging	Bulk
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	20mH @ 1kHz
Current Rating (Max)	1A
DC Resistance (DCR) (Max)	490mOhm
Voltage Rating - DC	-
Voltage Rating - AC	250V
Operating Temperature	-55°C ~ 105°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	0.906" L x 0.748" W (23.00mm x 19.00mm)
Height (Max)	1.083" (27.50mm)
Package / Case	Vertical, 4 PC Pin
Base Part Number	7500
